Panduit Corp - Panduit LCC2-14A-Q Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983382460
Buy American - Y
Catalog Number - LCC2-14A-Q
Color - Brown
Conductor Size - 2 AWG
Packaging
1 ea
EAN
00074983382460
Part #
202423
Catalog #
LCC2-14A-Q
Commercial reference
LCC2-14A-Q
12-Digit UPC:
074983382460
Buy American:
Y
Catalog Number:
LCC2-14A-Q
Color:
Brown
Conductor Size:
2 AWG
Country of Origin:
Mexico
ERP_productname:
PAND LCC2-14A-Q 2 HOLE CU LONG BARREL NO -
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Mounting Type:
Hole
Number of Holes:
2 Hole
Overall Length:
2.77 in
Size:
#2 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCC
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_29831424

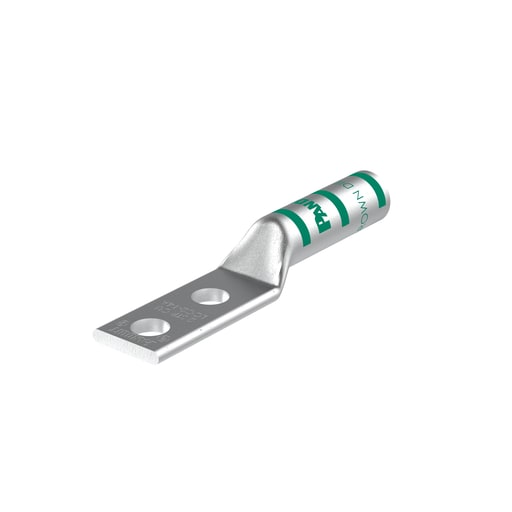

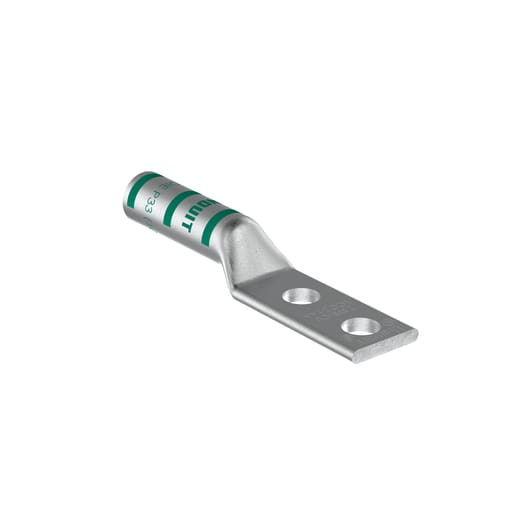

The LCC2-14A-Q Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3 - Prop 65: No
