Panduit Corp - Panduit LCC250-12-X 2-Hole 250 MCM 1/2 Inch Stud Hole 1.75 Inch Hole Spacing Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983902453
Buy American - Y
Catalog Number - LCC250-12-X
Color - Black on Yellow
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983902453
Part #
215668
Catalog #
LCC250-12-X
Commercial reference
LCC250-12-X
12-Digit UPC:
074983902453
Buy American:
Y
Catalog Number:
LCC250-12-X
Color:
Black on Yellow
Country of Origin:
Mexico
ERP_productname:
PAND LCC250-12-X 250MCM 2HOLE LUG 1/2 STUD
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
5.23 in
Size:
250 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Type LCC
Voltage:
35000 Volt
SoneparProductId:
SKU_US_26573496

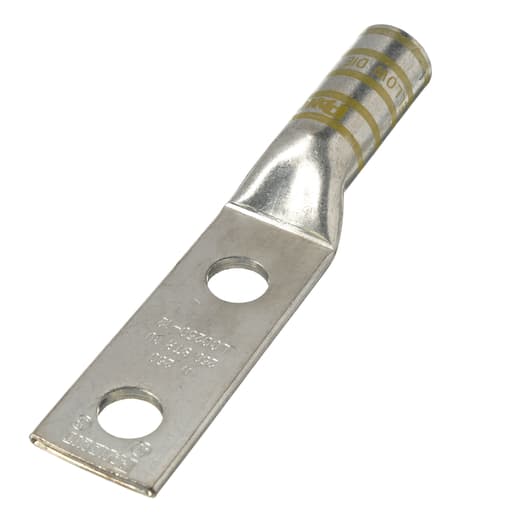

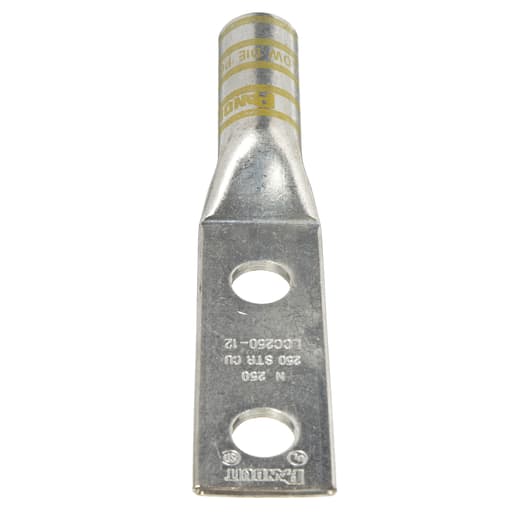

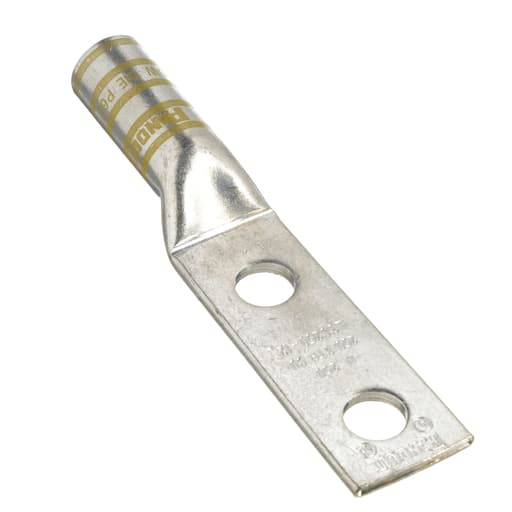

The LCC250-12-X Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3 - Prop 65: No
