Panduit Corp - Panduit LCC300-12-X Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983902507
Buy American - Y
Catalog Number - LCC300-12-X
Color - White
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983902507
Part #
215673
Catalog #
LCC300-12-X
Commercial reference
LCC300-12-X
12-Digit UPC:
074983902507
Buy American:
Y
Catalog Number:
LCC300-12-X
Color:
White
Country of Origin:
Mexico
ERP_productname:
PAND LCC300-12-X COPPER COMP LUG 2 2 HOLE 300 KCMIL 1/2 STUD
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Mounting Type:
2.31 in Hole
Number of Holes:
2 Hole
Overall Length:
5.94 in
Size:
300 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Straight, Type LCC
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_29505086

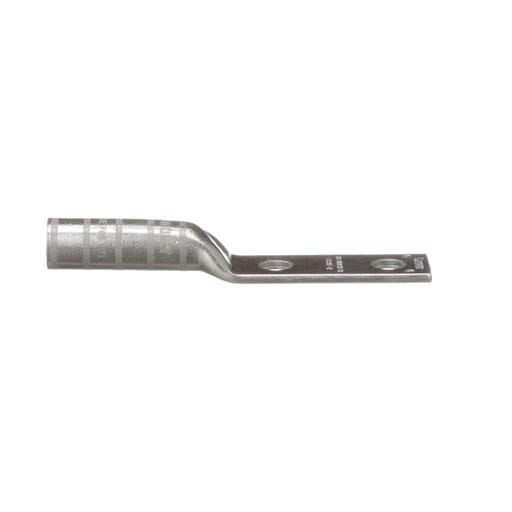

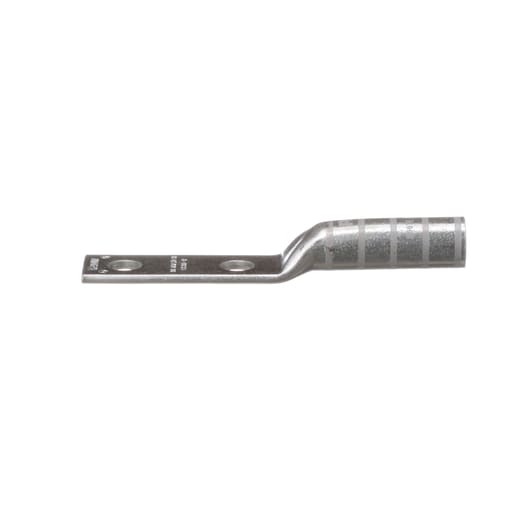

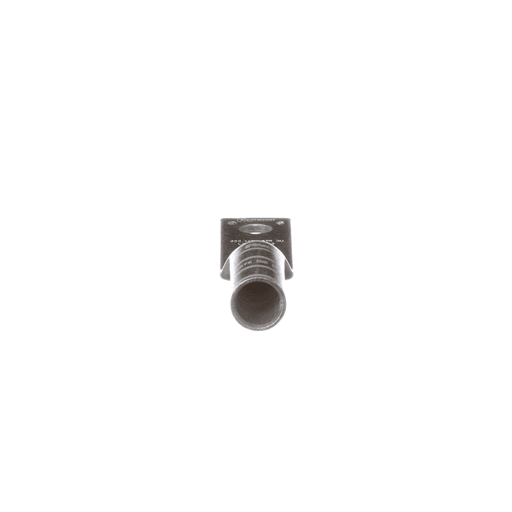

The LCC300-12-X Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
