Panduit Corp - Panduit LCC4/0-12-X 2-Hole 4/0 AWG 1/2 Inch 1.75 Inch Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983902408
Buy American - Y
Catalog Number - LCC4/0-12-X
Color - White
Conductor Size - 4/0 AWG
Packaging
1 ea
EAN
00074983902408
Part #
214662
Catalog #
LCC4/0-12-X
Commercial reference
LCC4/0-12-X
12-Digit UPC:
074983902408
Buy American:
Y
Catalog Number:
LCC4/0-12-X
Color:
White
Conductor Size:
4/0 AWG
Country of Origin:
Mexico
ERP_productname:
PAND LCC4/0-12-X 4/0 2HOLE LUG 1/2 STUD
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
5.13 in
Size:
4/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCC
Voltage:
35 kV
SoneparProductId:
SKU_US_26573558

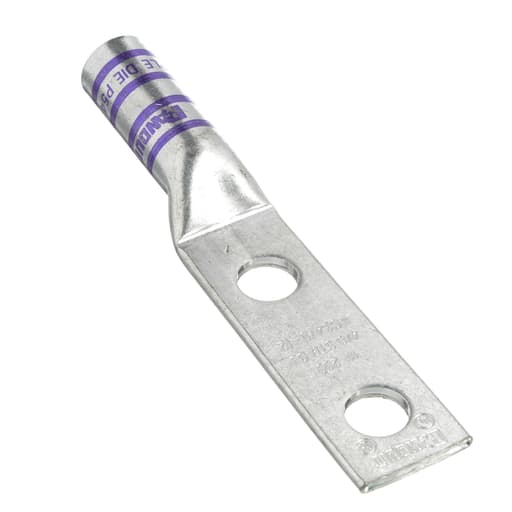

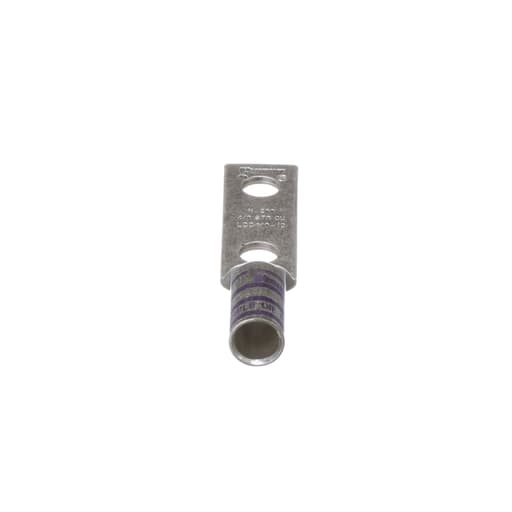

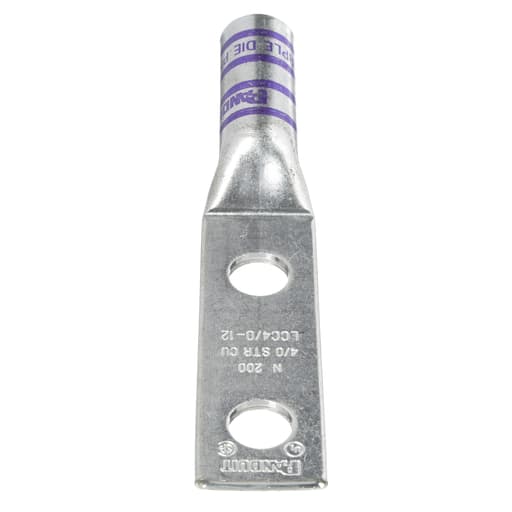

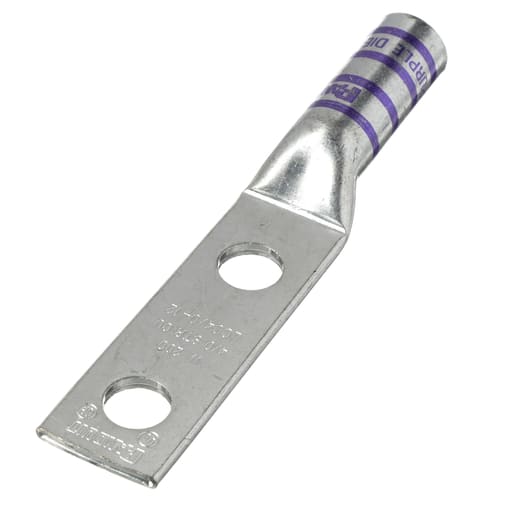

The LCC4/0-12-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
