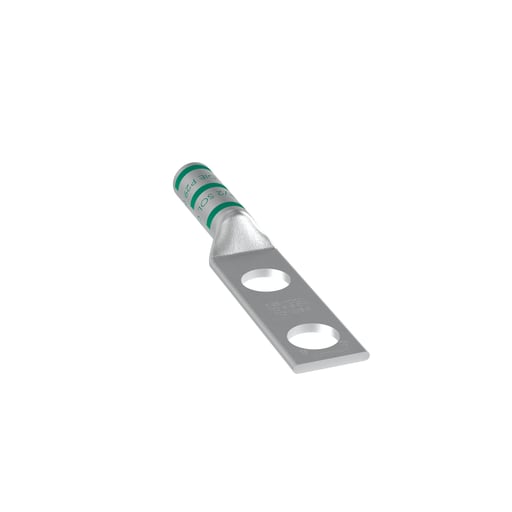

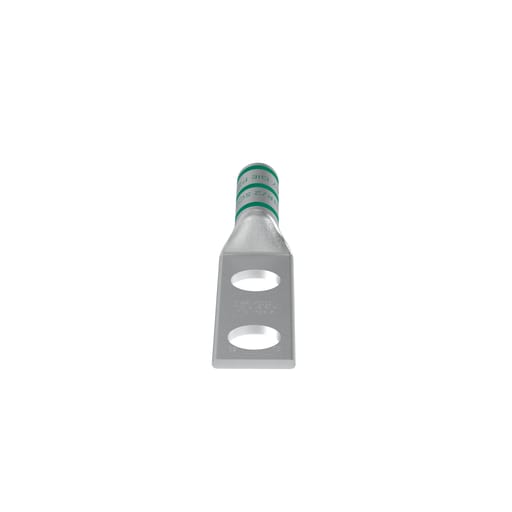

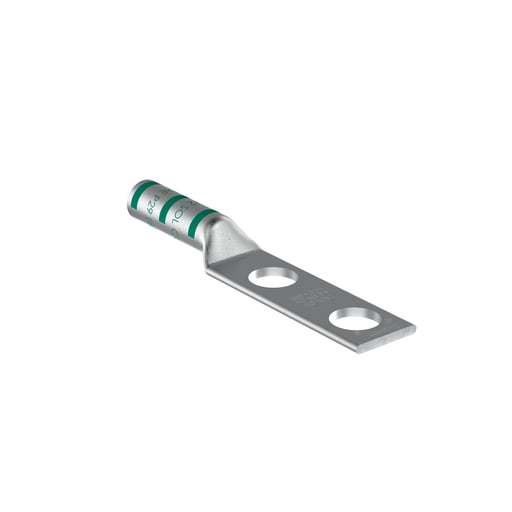

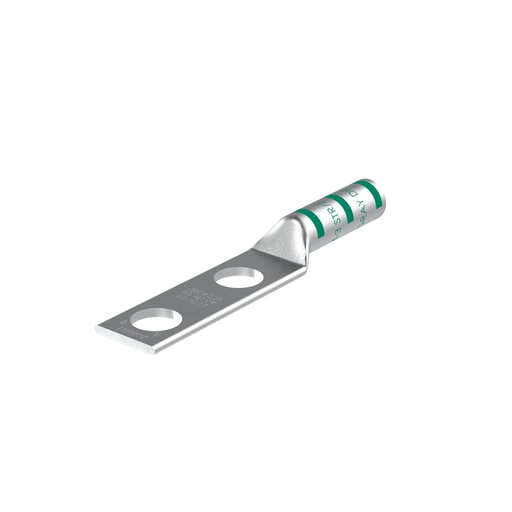

Panduit Corp - Panduit LCC4-38D-L Pan-Lug™ Copper Blank Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983382545
Buy American - Y
Catalog Number - LCC4-38D-L
Color - Gray
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983382545
Part #
126885
Catalog #
LCC4-38D-L
Commercial reference
LCC4-38D-L
12-Digit UPC:
074983382545
Buy American:
Y
Catalog Number:
LCC4-38D-L
Color:
Gray
Country of Origin:
Mexico
ERP_productname:
PAND LCC4-38D-L COPPER COMP. LUG, 2 HOLE, #4 - #3 AWG ST
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
3.17 in
Size:
#4 . #3 AWG Code STR, #2 AWG Code SOL
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_31731398
The LCC4-38D-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
