Panduit Corp - Panduit LCC500-12-6 2-Hole 500 MCM 1/2 Inch Stud Hole Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983902651
Buy American - Y
Catalog Number - LCC500-12-6
Color - Light Brown
Conductor Size - 500 kcmil
Packaging
1 ea
EAN
00074983902651
Part #
103837
Catalog #
LCC500-12-6
Commercial reference
LCC500-12-6
12-Digit UPC:
074983902651
Buy American:
Y
Catalog Number:
LCC500-12-6
Color:
Light Brown
Conductor Size:
500 kcmil
Country of Origin:
Mexico
ERP_productname:
PAND LCC500-12-6 500MCM 2HOLE LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
6.36 in
Size:
500 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Type LCC
Voltage:
35 kV
SoneparProductId:
SKU_US_26573458

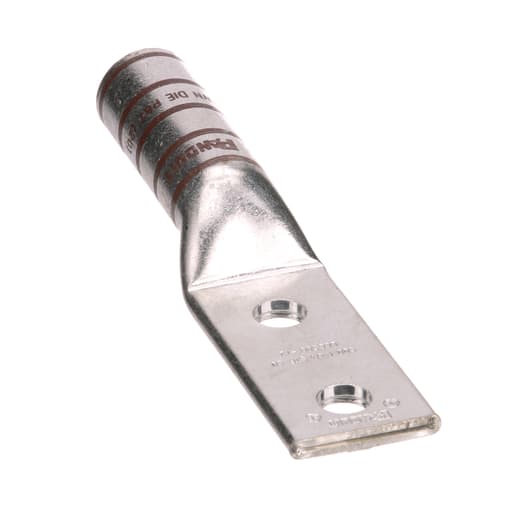

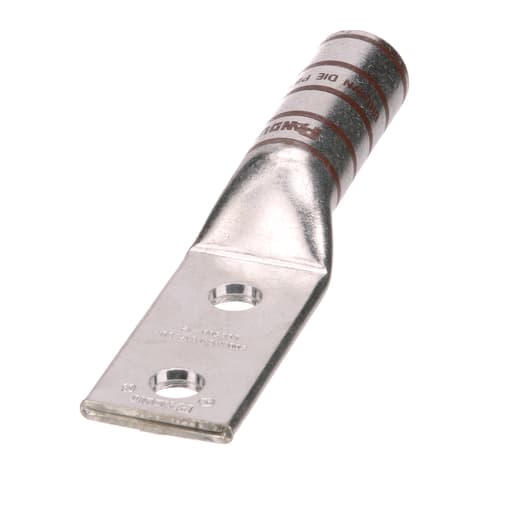

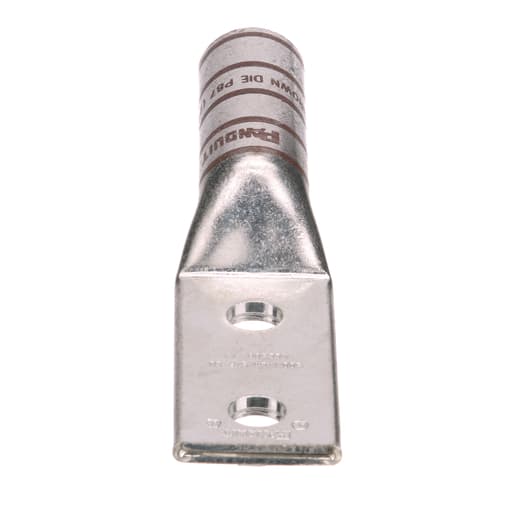

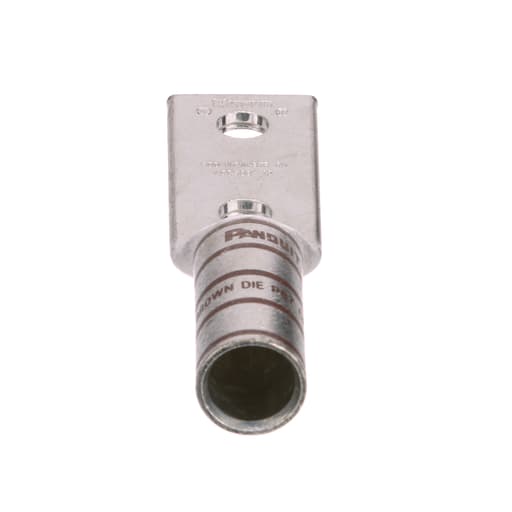

The LCC500-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3 - Prop 65: No
