Panduit Corp - Panduit LCC6-14AW-L Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983797745
Buy American - Y
Catalog Number - LCC6-14AW-L
Color - Blue
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983797745
Part #
139657
Catalog #
LCC6-14AW-L
Commercial reference
LCC6-14AW-L
12-Digit UPC:
074983797745
Buy American:
Y
Catalog Number:
LCC6-14AW-L
Color:
Blue
Country of Origin:
Mexico
ERP_productname:
PAND LCC6-14AW-L COPPER COMP. LUG, 2 HOLE, #6 AWG, 1/4 (
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
2.49 in
Size:
#6 AWG Code
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_30226268

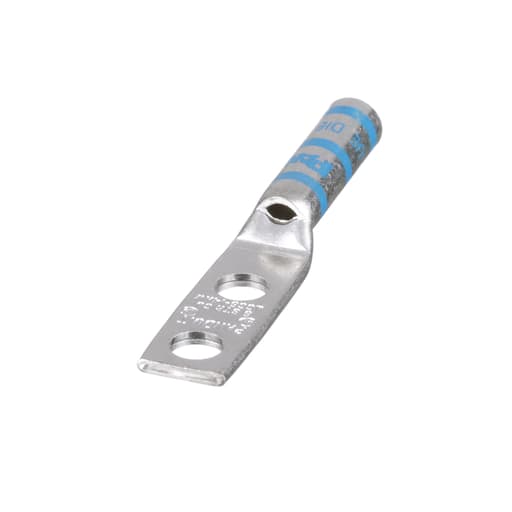

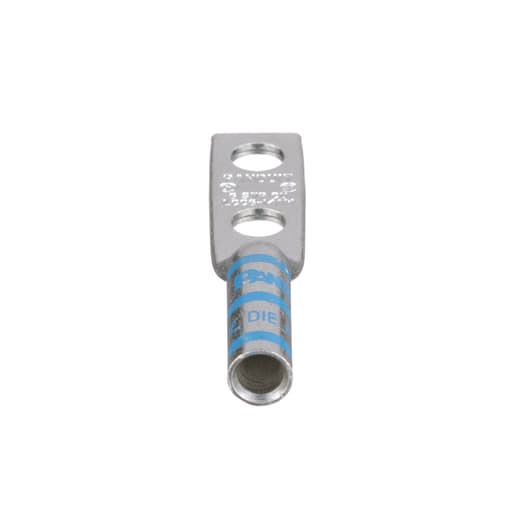

The LCC6-14AW-L Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The inspection window visually assures full conductor insertion. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
