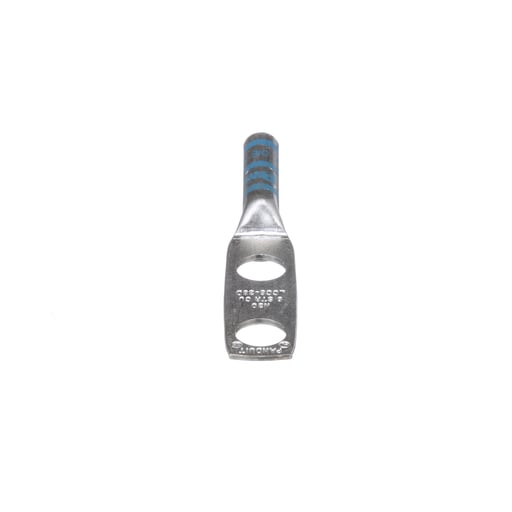

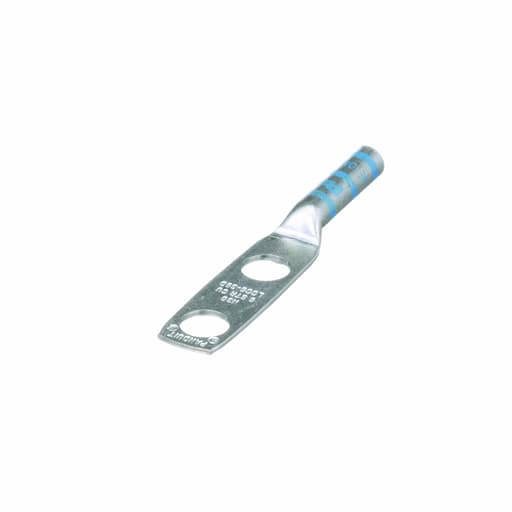

Panduit Corp - Panduit LCC6-38D-L Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983382590

  • Buy American - Y

  • Catalog Number - LCC6-38D-L

  • Color - Blue

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00074983382590

Part #

107120

Catalog #

LCC6-38D-L

Commercial reference

LCC6-38D-L

12-Digit UPC:

074983382590

Buy American:

Y

Catalog Number:

LCC6-38D-L

Color:

Blue

Country of Origin:

Mexico

ERP_productname:

PAND LCC6-38D-L COPPER COMP LUG 2 HOLE #6 AWG 3/8

Family Brand Name:

Panduit Corp.

Material:

Copper

Number of Holes:

2 Hole

Overall Length:

3.15 in

Size:

#6 AWG Code

Sub Brand:

Pan-Lug™

Type:

Compression Lug

Voltage:

35,000 Volt

SoneparProductId:

SKU_US_30229669

The LCC6-38D-L Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3 - Prop 65: No
