Panduit Corp - Panduit LCC600-12-6 2-Hole 600 MCM 1/2 Inch Stud Hole Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983902767
Buy American - Y
Catalog Number - LCC600-12-6
Color - Green
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983902767
Part #
214648
Catalog #
LCC600-12-6
Commercial reference
LCC600-12-6
12-Digit UPC:
074983902767
Buy American:
Y
Catalog Number:
LCC600-12-6
Color:
Green
Country of Origin:
Mexico
ERP_productname:
PAND LCC600-12-6 COPPER COMP LUG 2 HOLE 600 KCMIL 1/2
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
6.63 in
Size:
600 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_26718182

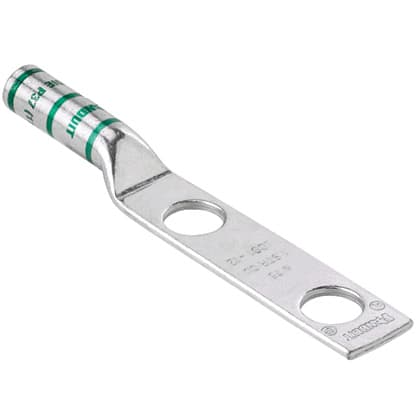

The LCC600-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3 - Prop 65: No
