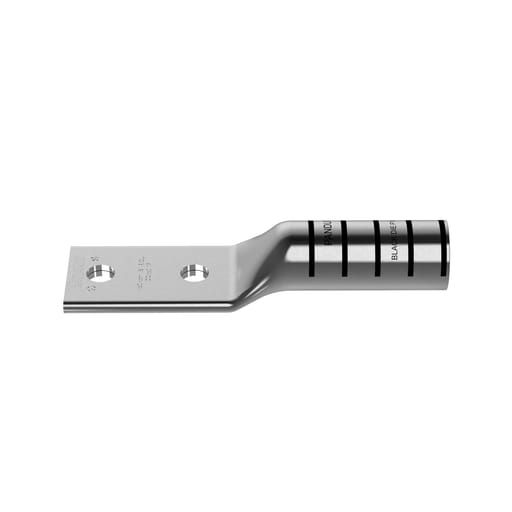

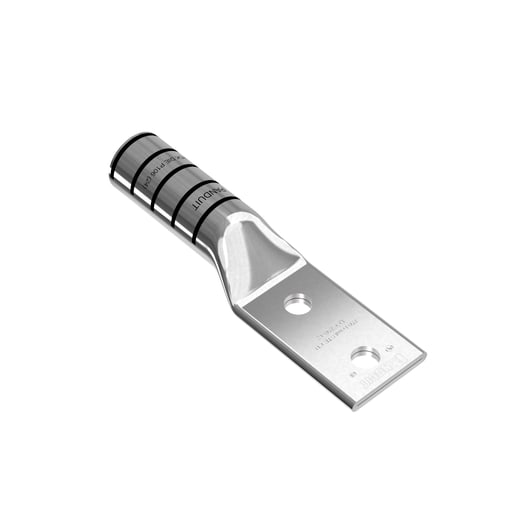

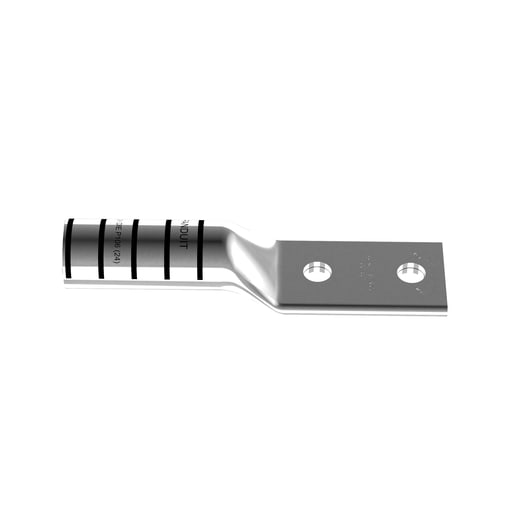

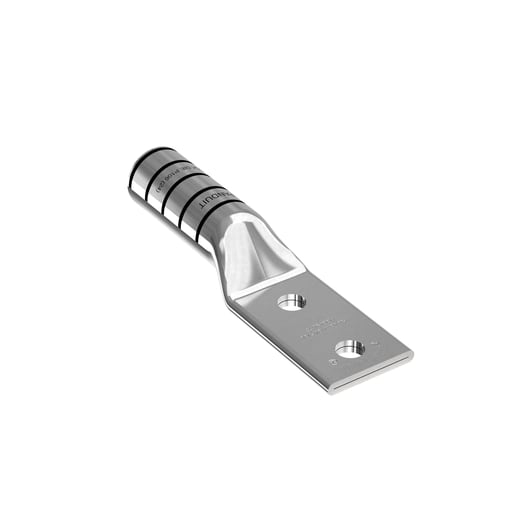

Panduit Corp - Panduit LCC750-12-6 2-Hole 750 MCM 1/2 Inch Stud Hole 1.75 Inch Hole Spacing Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983902750
Buy American - Y
Catalog Number - LCC750-12-6
Color - Black
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983902750
Part #
101227
Catalog #
LCC750-12-6
Commercial reference
LCC750-12-6
12-Digit UPC:
074983902750
Buy American:
Y
Catalog Number:
LCC750-12-6
Color:
Black
Country of Origin:
Mexico
ERP_productname:
PAND LCC750-12-6 COPPER COMP. LUG 2 HOLE 750 KCMIL 1/2
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
7.04 in
Size:
750 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Type LCC
Voltage:
35000 Volt
SoneparProductId:
SKU_US_26279500
The LCC750-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
