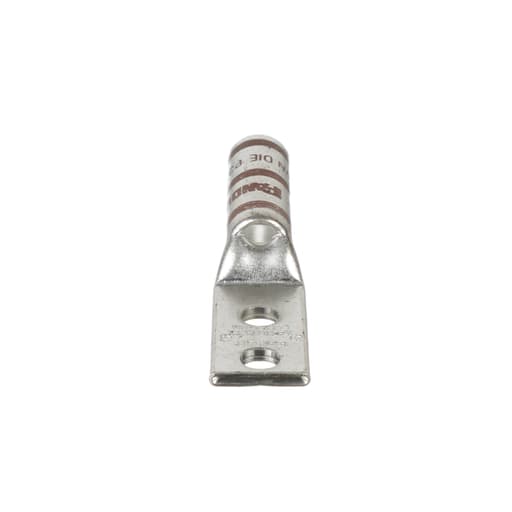

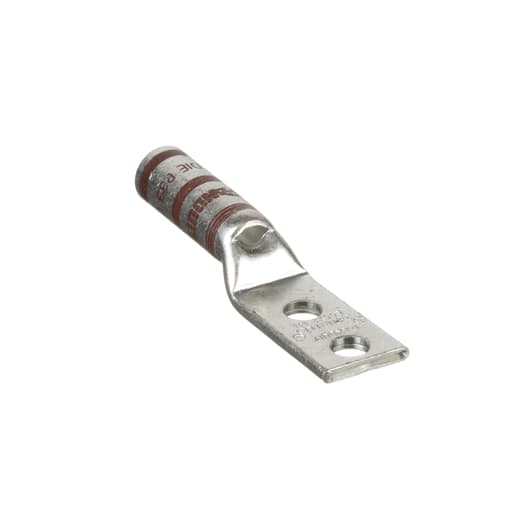

Panduit Corp - Panduit LCCX2-14A-E Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983425532
Buy American - Y
Catalog Number - LCCX2-14A-E
Color - Brown
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983425532
Part #
140557
Catalog #
LCCX2-14A-E
Commercial reference
LCCX2-14A-E
12-Digit UPC:
074983425532
Buy American:
Y
Catalog Number:
LCCX2-14A-E
Color:
Brown
Country of Origin:
Mexico
ERP_productname:
PAND LCCX2-14A-E COPPER COMP. LUG, 2 HOLE, #2 AWG FLEX, 1
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
2.89 in
Size:
#2 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_30042700
The LCCX2-14A-E Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
