Panduit Corp - Panduit LCCX650-12-6 Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983198245
Buy American - Y
Catalog Number - LCCX650-12-6
Color - Black
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983198245
Part #
158308
Catalog #
LCCX650-12-6
Commercial reference
LCCX650-12-6
12-Digit UPC:
074983198245
Buy American:
Y
Catalog Number:
LCCX650-12-6
Color:
Black
Country of Origin:
Mexico
ERP_productname:
PAND LCCX650-12-6 CU,COMPLUG,2H,650KFLEX,1/2S,1.75H,P K6
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
6.75 in
Size:
646.4 kcmil DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_181752786

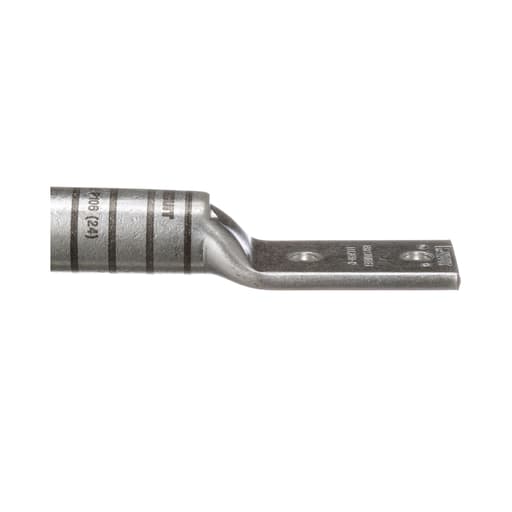

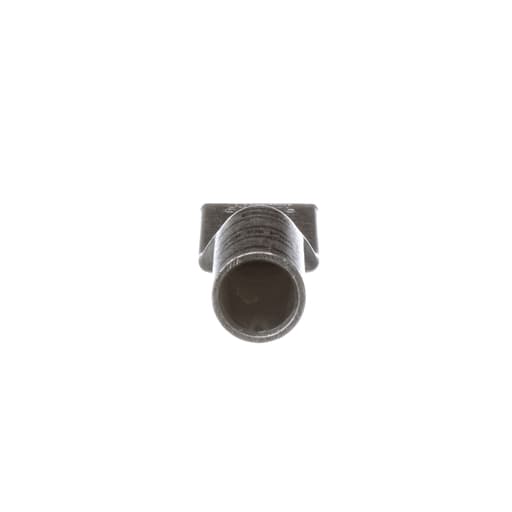

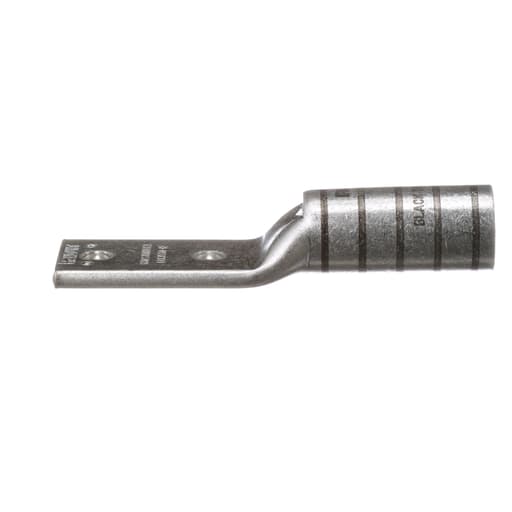

The LCCX650-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
