Panduit Corp - Panduit LCD2-14A-Q 2 AWG Copper Standard Barrel 2-Hole Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983382989
Buy American - Y
Catalog Number - LCD2-14A-Q
Color - Brown
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983382989
Part #
201812
Catalog #
LCD2-14A-Q
Commercial reference
LCD2-14A-Q
12-Digit UPC:
074983382989
Buy American:
Y
Catalog Number:
LCD2-14A-Q
Color:
Brown
Country of Origin:
Mexico
ERP_productname:
PAND LCD2-14A-Q 2 HOLE COPPER STD BARREL LUG-
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
2.4 in
Size:
#2 AWG Code
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_26521689

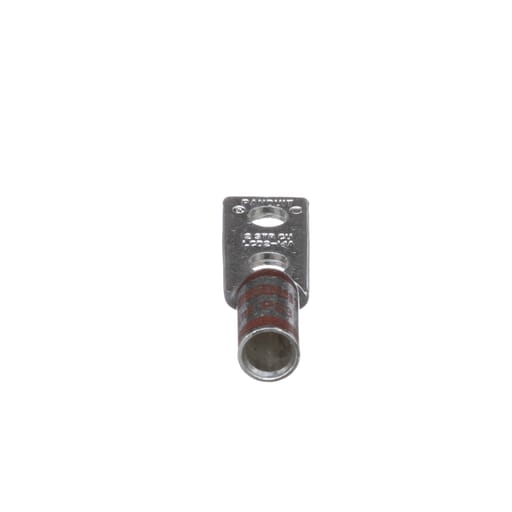

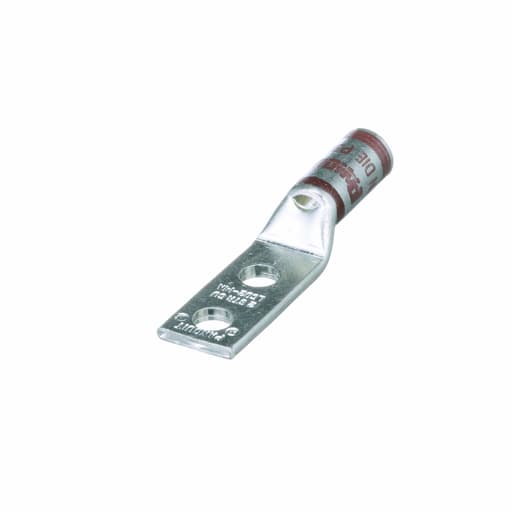

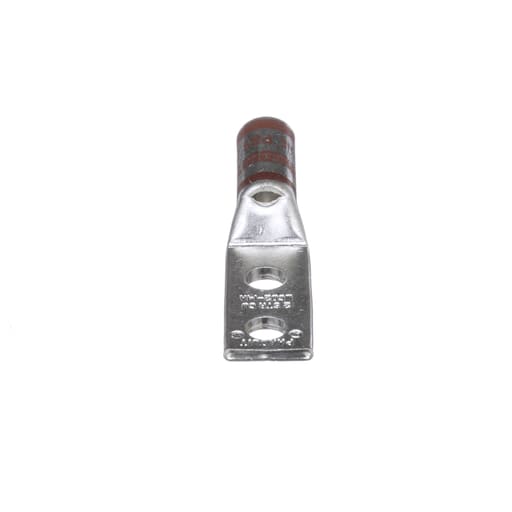

The LCD2-14A-Q Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3 - Prop 65: No
