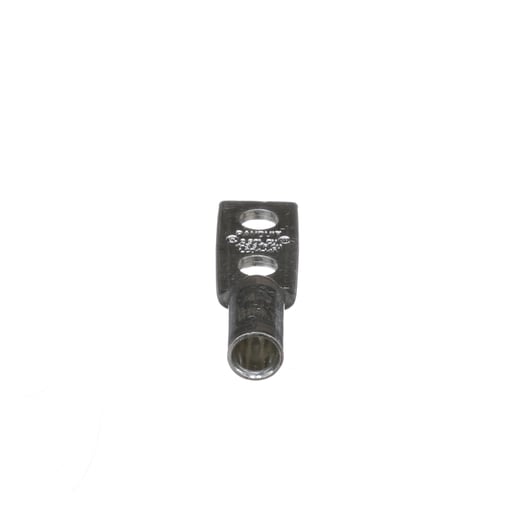

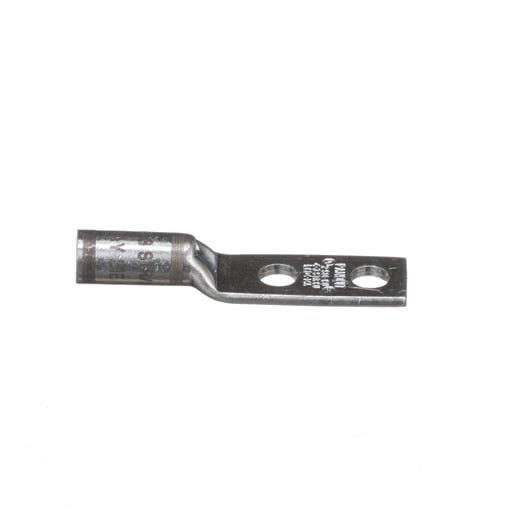

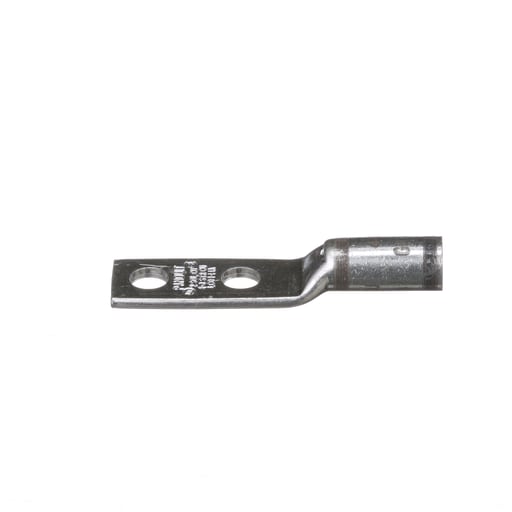

Panduit Corp - Panduit LCD4-14A-L Compression Lug, 4, Tin Plate Copper, Straight, Two 1/4" Stud, PK50
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983383047
Buy American - Y
Catalog Number - LCD4-14A-L
Color - Gray
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983383047
Part #
205849
Catalog #
LCD4-14A-L
Commercial reference
LCD4-14A-L
12-Digit UPC:
074983383047
Buy American:
Y
Catalog Number:
LCD4-14A-L
Color:
Gray
Country of Origin:
Mexico
ERP_productname:
PAND LCD4-14A-L COPPER COMPRESSION LUG, 2 HOLE, #4 - #3
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
2.26 in
Size:
#4 . #3 AWG Code STR, #2 AWG Code SOL
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_30874644
The LCD4-14A-L Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
