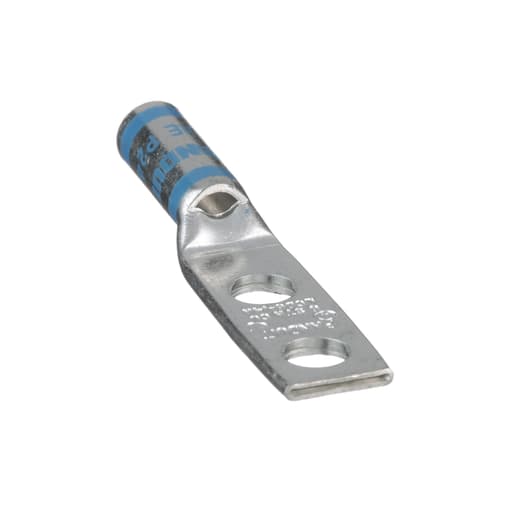

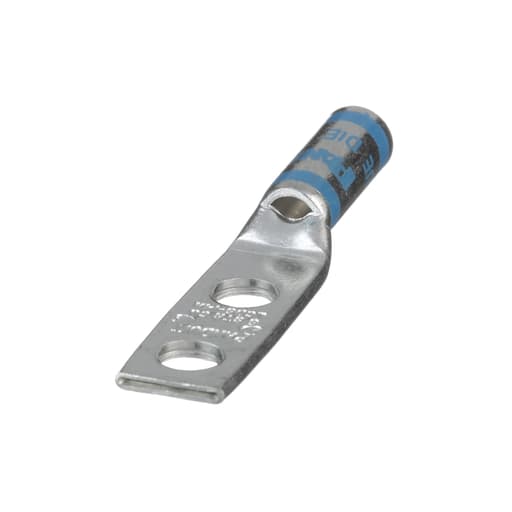

Panduit Corp - Panduit LCD6-14A-L Compression. Lug, 6, Tin Plate Copper, Two 1/4" Stud, 0.63" Spacing
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983383108
Buy American - Y
Catalog Number - LCD6-14A-L
Color - Olive, Orange, Royal Blue and Yellow
Conductor Size - 6 AWG
Packaging
1 ea
EAN
00074983383108
Part #
201805
Catalog #
LCD6-14A-L
Commercial reference
LCD6-14A-L
12-Digit UPC:
074983383108
Buy American:
Y
Catalog Number:
LCD6-14A-L
Color:
Olive, Orange, Royal Blue and Yellow
Conductor Size:
6 AWG
Country of Origin:
Mexico
ERP_productname:
PAND LCD6-14A-L 2 HOLE COPPER STD BARREL LUG-
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
2.24 in
Size:
#6 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCD
Voltage:
35000 Volt
SoneparProductId:
SKU_US_30829525
The LCD6-14A-L Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3 - Prop 65: No
