Panduit Corp - Panduit LCD8-14A-L Compression Lug, Tin Plate Copper, Straight, Two 1/4" Stud, PK50
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983383160
Buy American - Y
Catalog Number - LCD8-14A-L
Color - Amber,Green,Red,White
Conductor Size - 14-8 AWG
Packaging
1 ea
EAN
00074983383160
Part #
136953
Catalog #
LCD8-14A-L
Commercial reference
LCD8-14A-L
12-Digit UPC:
074983383160
Buy American:
Y
Catalog Number:
LCD8-14A-L
Color:
Amber,Green,Red,White
Conductor Size:
14-8 AWG
Country of Origin:
Mexico
ERP_productname:
PAND LCD8-14A-L COPPER COMPRESSION LUG, 2 HOLE, #8 AWG,
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Mounting Type:
Hole
Number of Holes:
2 Hole
Overall Length:
1.97 in
Size:
#8 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCD
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25618180

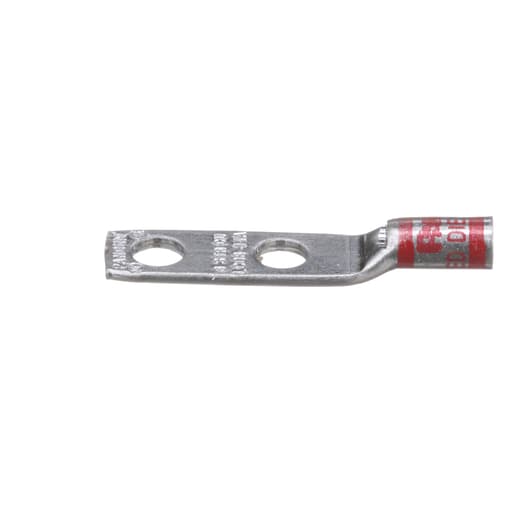

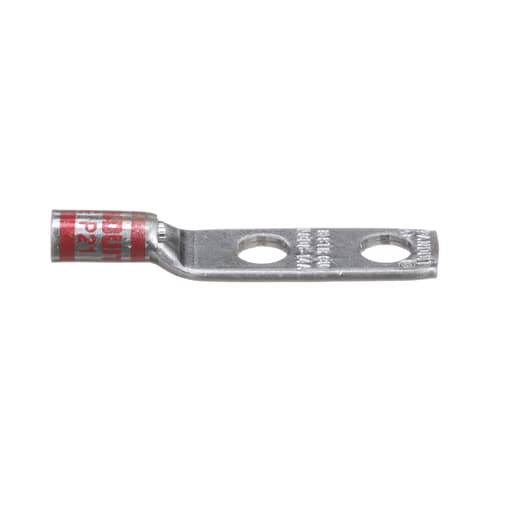

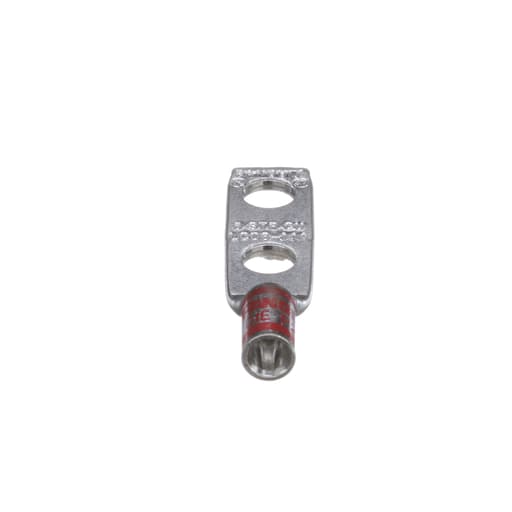

The LCD8-14A-L Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3 - Prop 65: No
