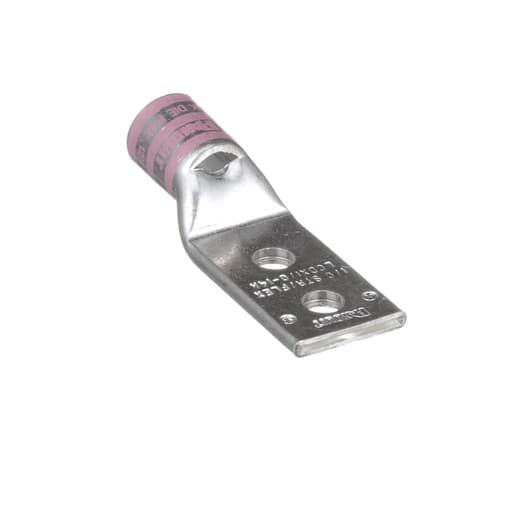

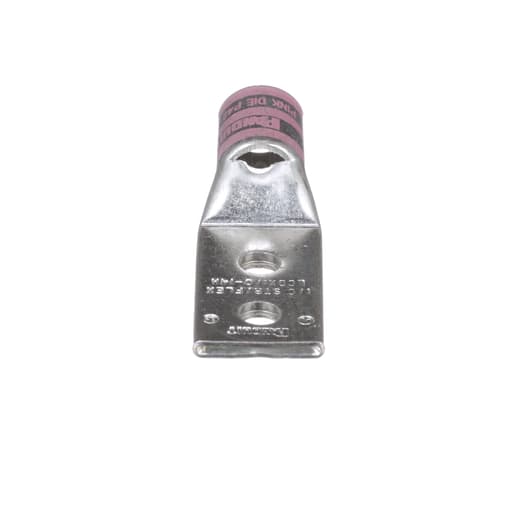

Panduit Corp - Panduit LCDX1/0-14A-X Compression Lug, 1/0, Tin Plate Copper, Straight, Two 1/4" Stud, PK10
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983423774
Buy American - Y
Catalog Number - LCDX1/0-14A-X
Color - Pink
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983423774
Part #
337632
Catalog #
LCDX1/0-14A-X
Commercial reference
LCDX1/0-14A-X
12-Digit UPC:
074983423774
Buy American:
Y
Catalog Number:
LCDX1/0-14A-X
Color:
Pink
Country of Origin:
Mexico
ERP_productname:
PAND LCDX1/0-14A-X PAN-LUG? LCDX1/0-14A-X COMP. LUG, 1/0, T
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
2.45 in
Size:
1/0 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_31615898
The LCDX1/0-14A-X Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
