Panduit Corp - Panduit LCDX2-14A-E Compression Lug, Tin Plate Copper, Straight, Two 1/4" Stud, PK20
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983426843
Buy American - Y
Catalog Number - LCDX2-14A-E
Color - Brown
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983426843
Part #
154962
Catalog #
LCDX2-14A-E
Commercial reference
LCDX2-14A-E
12-Digit UPC:
074983426843
Buy American:
Y
Catalog Number:
LCDX2-14A-E
Color:
Brown
Country of Origin:
Mexico
ERP_productname:
PAND LCDX2-14A-E CULUG,2HOLE,#2AWG,1/4"STUD,.63"PKG2 0
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
2.13 in
Size:
#2 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25444635

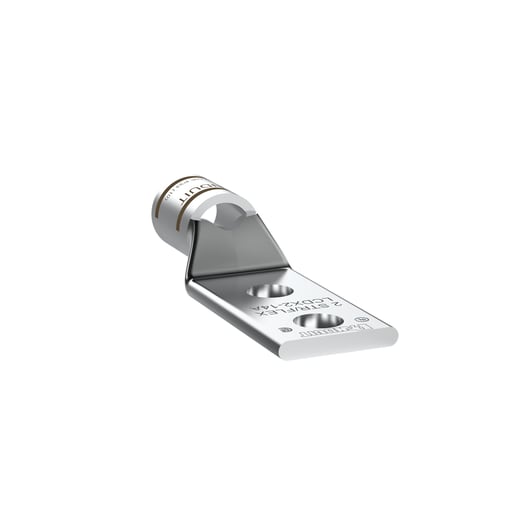

The LCDX2-14A-E Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
