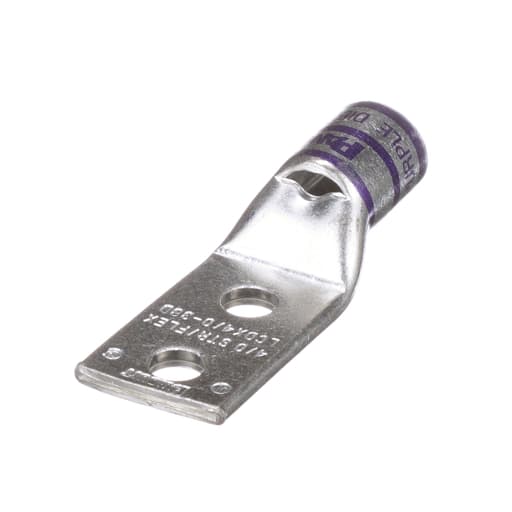

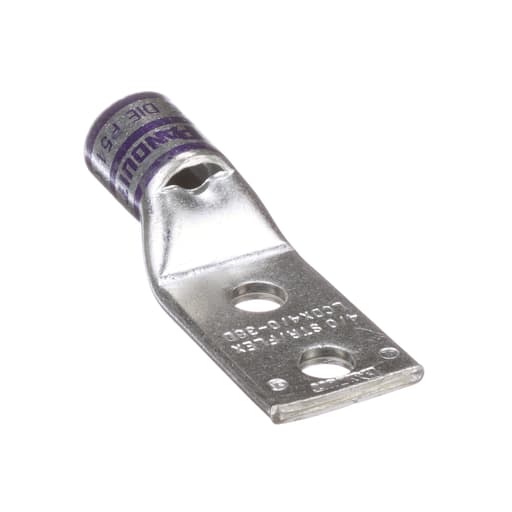

Panduit Corp - Panduit LCDX4/0-38D-X Compression Lug, 4/0, Flex, Tin Plate Copper, Straight, Two 3/8" Stud
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983423880
Buy American - Y
Catalog Number - LCDX4/0-38D-X
Color - Purple
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983423880
Part #
102670
Catalog #
LCDX4/0-38D-X
Commercial reference
LCDX4/0-38D-X
12-Digit UPC:
074983423880
Buy American:
Y
Catalog Number:
LCDX4/0-38D-X
Color:
Purple
Country of Origin:
Mexico
ERP_productname:
PAND LCDX4/0-38D-X COPPER COMP LUG 2 HOLE 4/0 AWG FLEX
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
3.34 in
Size:
4/0 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_29032518
The LCDX4/0-38D-X Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved - Prop 65: No
