Panduit Corp - Panduit LCDX6-14A-L Compression Lug, 6, Flex, Tin Plate Copper, Straight, Two 1/4" Stud

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983423644

  • Buy American - Y

  • Catalog Number - LCDX6-14A-L

  • Color - Olive, Orange, Royal Blue and Yellow

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00074983423644

Part #

133527

Catalog #

LCDX6-14A-L

Commercial reference

LCDX6-14A-L

12-Digit UPC:

074983423644

Buy American:

Y

Catalog Number:

LCDX6-14A-L

Color:

Olive, Orange, Royal Blue and Yellow

Country of Origin:

Mexico

ERP_productname:

PAND LCDX6-14A-L COPPER COMP. LUG, 2 HOLE, #6 AWG FLEX, 1

Family Brand Name:

Panduit Corp.

Finish:

Tin Plated

Material:

Copper

Number of Holes:

2 Hole

Overall Length:

1.91 in

Size:

#6 AWG Class B, C, G, H, I, K, M and DLO

Sub Brand:

Pan-Lug™

Type:

Preterminated Copper Trunk, Category 6

Voltage:

35,000 Volt

SoneparProductId:

SKU_US_29322767

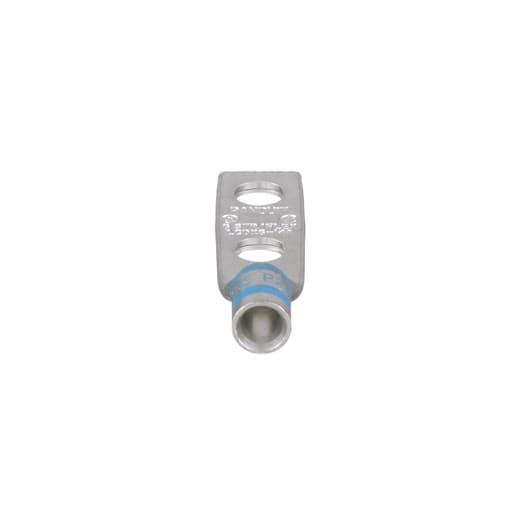

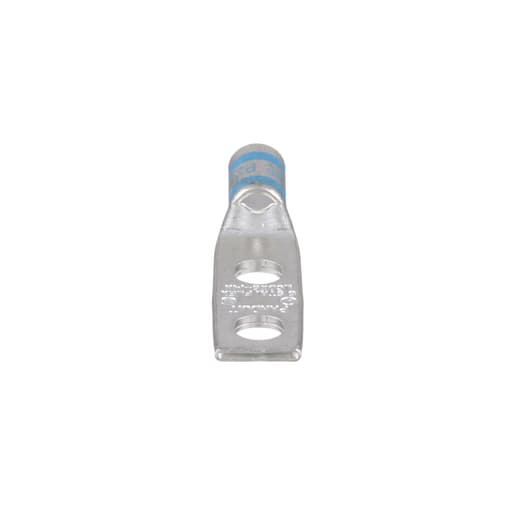

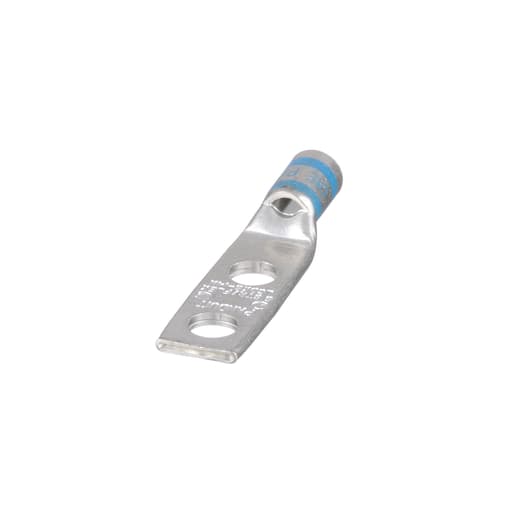

The LCDX6-14A-L Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved - Prop 65: No
