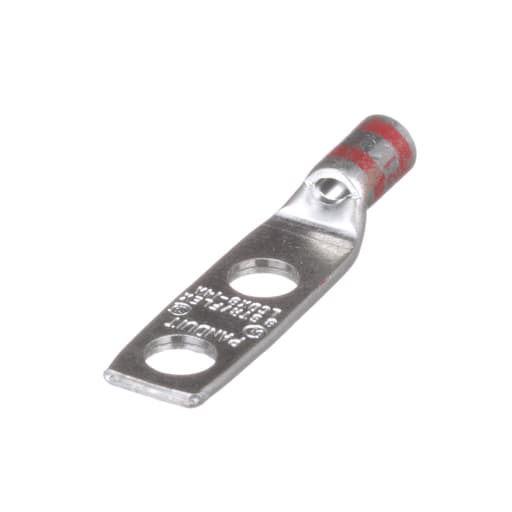

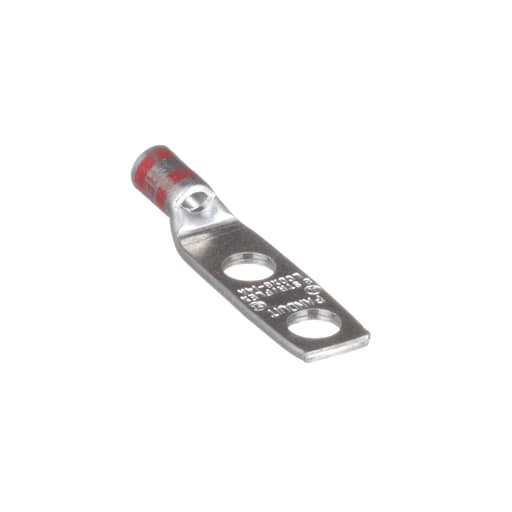

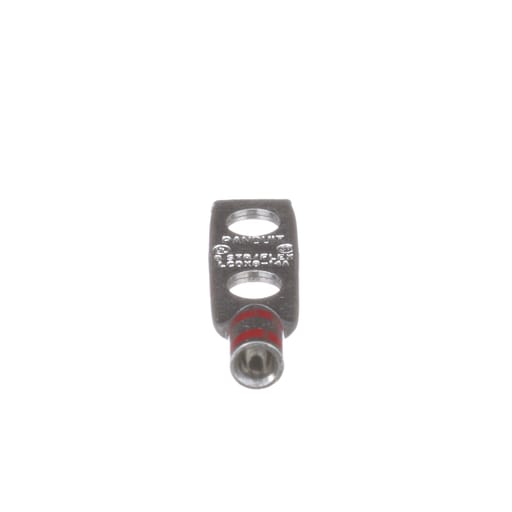

Panduit Corp - Panduit LCDX8-14A-L Compression Lug, Flex, Tin Plate Copper, Straight, Two 1/4" Stud, PK50
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983423538
Buy American - Y
Catalog Number - LCDX8-14A-L
Color - Red
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983423538
Part #
205466
Catalog #
LCDX8-14A-L
Commercial reference
LCDX8-14A-L
12-Digit UPC:
074983423538
Buy American:
Y
Catalog Number:
LCDX8-14A-L
Color:
Red
Country of Origin:
Mexico
ERP_productname:
PAND LCDX8-14A-L CULUG,2HOLE,#8AWG,1/4"STUD,.63"PKG5 0
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
1.83 in
Size:
#8 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_29031879
The LCDX8-14A-L Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved - Prop 65: No
