Panduit Corp - Panduit LCMA120-12-L Compression Lug, Metric, Tin Plate Copper, Straight, PK50
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983769575
Amperage - NA
Buy American - Y
Catalog Number - LCMA120-12-L
Country of Origin - AR
Packaging
1 ea
EAN
00074983769575
Part #
368713
Catalog #
LCMA120-12-L
Commercial reference
LCMA120-12-L
12-Digit UPC:
074983769575
Amperage:
NA
Buy American:
Y
Catalog Number:
LCMA120-12-L
Country of Origin:
AR
ERP_productname:
PAND LCMA120-12-L PAN-LUG? LCMA120-12-L COMP. LUG, METRIC, TIN PLT COPPER, STRT, PK50
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
NA
Overall Length:
64.7 mm
Size:
120mm. Class 2
Sub Brand:
Pan-Lug™
Type:
Metric Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_74022067

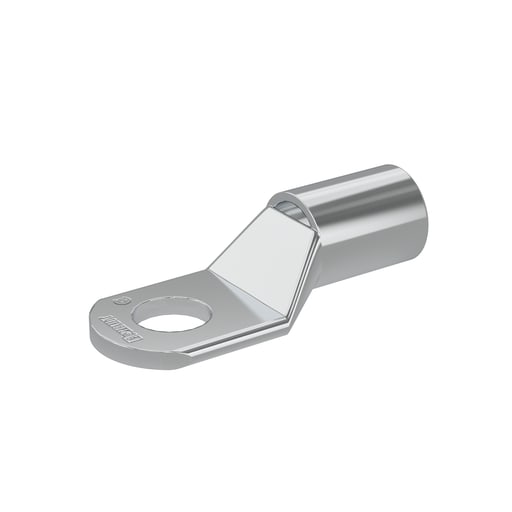

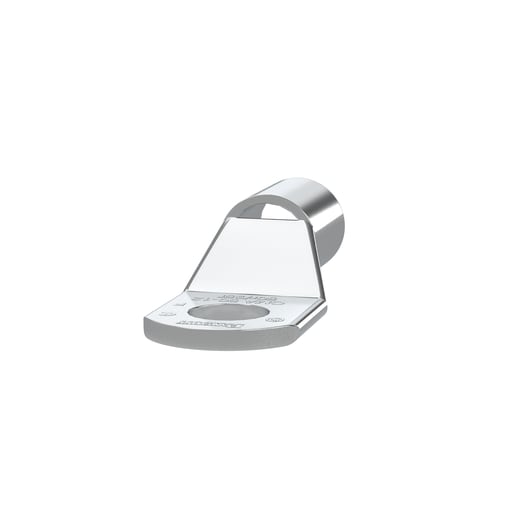

The LCMA120-12-L Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant
