Panduit Corp - Panduit LDPH5IW8-A LDPH5 Hinged 2-Piece Power Rated Raceway
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983343980
Applications - NA
Buy American - Y
Catalog Number - LDPH5IW8-A
Color - Off-White
Packaging
1 ea
EAN
00074983343980
Part #
139809
Catalog #
LDPH5IW8-A
Commercial reference
LDPH5IW8-A
12-Digit UPC:
074983343980
Applications:
NA
Buy American:
Y
Catalog Number:
LDPH5IW8-A
Color:
Off-White
Country of Origin:
USA
ERP_productname:
PAND LDPH5IW8-A LDPH5 HINGED, 2-PIECE POWER RATED RACEWA
Family Brand Name:
Panduit Corp.
Heights:
0.55 Inch
Length:
2.4 m
Material:
PVC
Mounting Type:
Adhesive
Overall Length:
8 ft
Sub Brand:
Pan-Way
Type:
Power Rated
Widths:
26 mm
SoneparProductId:
SKU_US_25587102

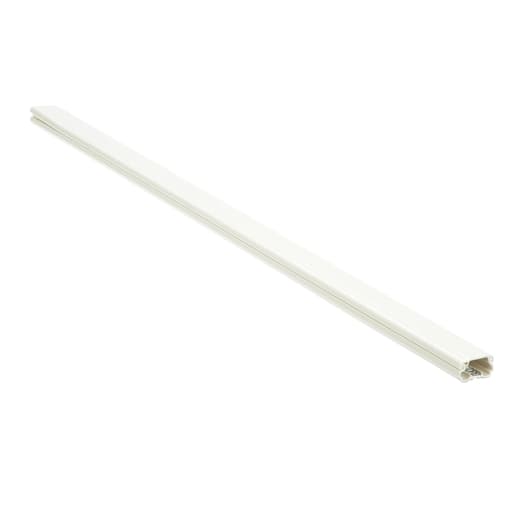

The LDPH5 power rated surface raceway is a two-piece latching raceway with cover suitable for applications up to 600 V. It features pre-punched mounting holes and factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 1.02 inches wide by 0.55 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is off white. Standards and Certifications: Standards Met: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. - Prop 65: No
