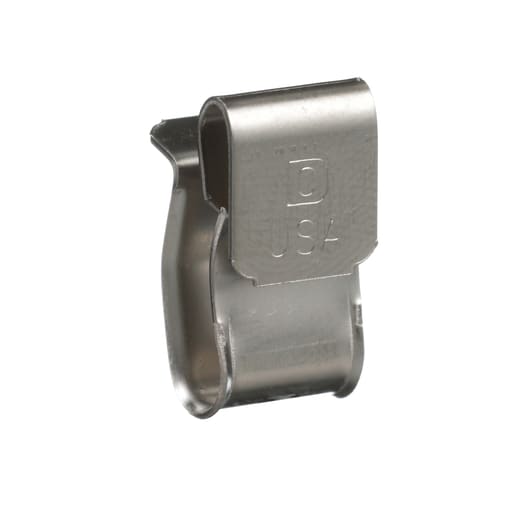

Panduit Corp - Panduit MEC100-PV-C Metal Solar Edge Clip
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 613056766679
Applications - For routing PV wires along solar panel modules
Buy American - Y
Catalog Number - MEC100-PV-C
Color - Silver
Packaging
1 ea
EAN
00613056766679
Part #
373105
Catalog #
MEC100-PV-C
Commercial reference
MEC100-PV-C
12-Digit UPC:
613056766679
Applications:
For routing PV wires along solar panel modules
Buy American:
Y
Catalog Number:
MEC100-PV-C
Color:
Silver
Country of Origin:
USA
ERP_productname:
PAND MEC100-PV-C MEC100-PV-C CABLE CLIP
Environment:
Indoor,Outdoor
Family Brand Name:
Panduit Corp.
Heights:
0.73 Inch
Material:
Stainless Steel
Mounting Type:
Edge Clip
Type:
Wire Clip
Widths:
0.38 in
SoneparProductId:
SKU_US_255017848
Stainless Steel Metal Edge Clip for Solar Applications. Can be installed on a Panel thickness ranging from 0.051" to 0.098" and can accommodate 1 or 2 wires with a diameter range of 0.161" to 0.240". Use when cable orientation is Parallel to the Outer edge of the panel. Standards and Certifications: Standards Met: cULus 1565 (E136577), RoHS Compliant - Prop 65: N
