Panduit Corp - Panduit NE2X1WH6 Slotted Duct, Halogen Free,2"X1"X6',White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983214907

  • Applications - Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications

  • Buy American - Y

  • Catalog Number - NE2X1WH6

  • Color - White

Packaging

  • 6 ea

EAN

00074983214907

Part #

417534

Catalog #

NE2X1WH6

Commercial reference

NE2X1WH6

12-Digit UPC:

074983214907

Applications:

Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications

Buy American:

Y

Catalog Number:

NE2X1WH6

Color:

White

Country of Origin:

USA

ERP_productname:

PAND NE2X1WH6 PANDUCT? NE2X1WH6 WIDE SLOT DUCT, WHITE, HAL-FREE PPO, 1.08"X2.14", PK6

Family Brand Name:

Panduit Corp.

Heights:

1.08 Inch

Length:

1.8 m

Material:

Polyphenylene Oxide

Mounting Type:

DIN Standard Mounting Holes

Overall Length:

6 ft

Size:

2.00 x 1.00

Sub Brand:

Panduct®

Tc Connection:

DIN Mounting Holes

Type:

Base Wiring Duct

Widths:

2.14 in

SoneparProductId:

SKU_US_29808175

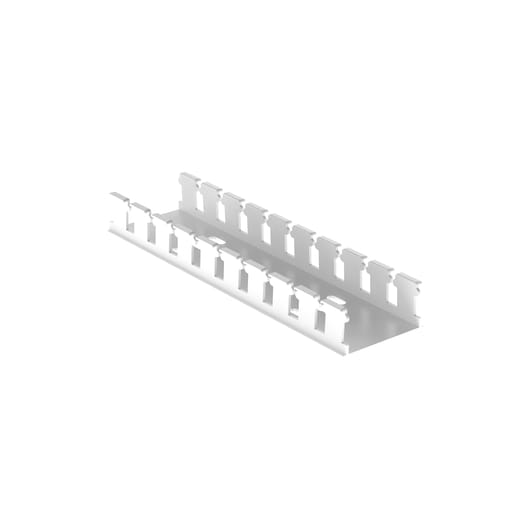

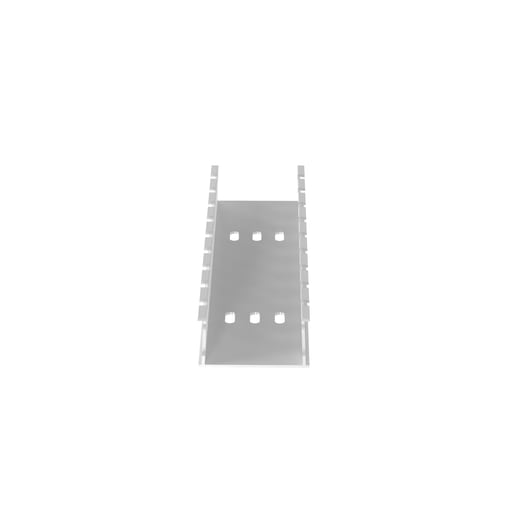

The NE2X1WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95.C (203.F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 1.08" x 2.14" (27.4 mm x 54.4 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package. Standards and Certifications: Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
