Panduit Corp - Panduit NE2X3WH6 Slotted Duct, Halogen Free,2"X3"X6',White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983214945

  • Applications - Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications

  • Buy American - Y

  • Catalog Number - NE2X3WH6

  • Color - White

Packaging

  • 1 ea

EAN

00074983214945

Part #

181113

Catalog #

NE2X3WH6

Commercial reference

NE2X3WH6

12-Digit UPC:

074983214945

Applications:

Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications

Buy American:

Y

Catalog Number:

NE2X3WH6

Color:

White

Country of Origin:

USA

ERP_productname:

PAND NE2X3WH6 SLOT HAL-FREE DUCT,2"X3"X6',WH, 6FT

Family Brand Name:

Panduit Corp.

Heights:

3.06 Inch

Length:

1.8 m

Material:

Polyphenylene Oxide

Mounting Type:

DIN Standard Mounting Holes

Overall Length:

6 ft

Size:

2.00 x 3.00

Sub Brand:

Panduct

Tc Connection:

Standard Mounting Holes

Type:

Base Wiring Duct

Widths:

2.14 in

SoneparProductId:

SKU_US_29901777

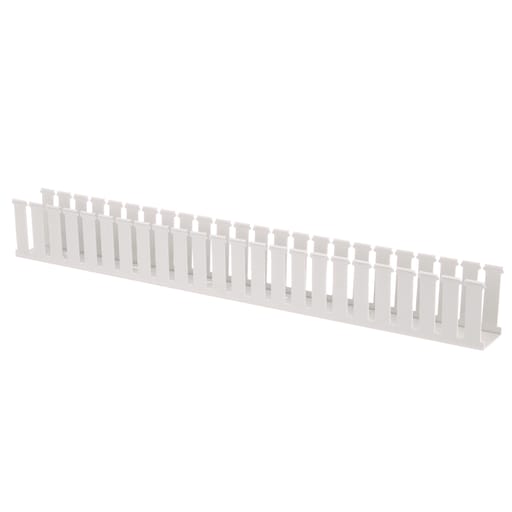

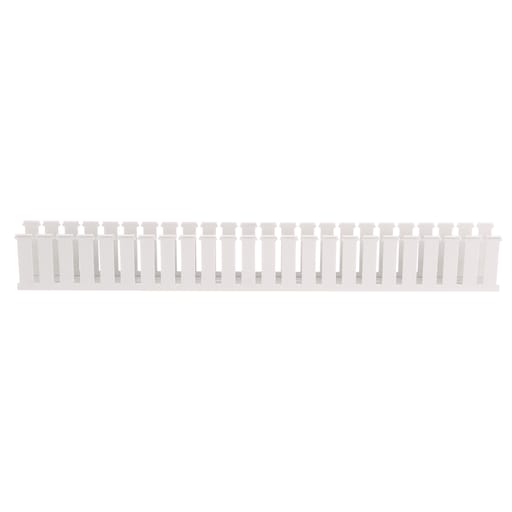

The NE2X3WH6 Panduct NE Halogen-Free Slotted Wiring Duct has a nominal duct size designed to optimize space. Manufactured with a special-purpose material for use in halogen-free or high-temperature applications. It has a UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95.C (203.F) and is 20% lighter than PVC. Mounting holes provided. Modified Polyphenylene Oxide (mPPO). 2" x 3" (50.8mm x 76.2mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6/package. Standards and Certifications: Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
