Panduit Corp - Panduit NE4X3WH6 Wide Slot Duct, White, Hal-Free PPO, 3.06"x4.14", PK6

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983215140

  • Applications - Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications

  • Buy American - Y

  • Catalog Number - NE4X3WH6

  • Color - White

Packaging

  • 1 ea

EAN

00074983215140

Part #

181125

Catalog #

NE4X3WH6

Commercial reference

NE4X3WH6

12-Digit UPC:

074983215140

Applications:

Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications

Buy American:

Y

Catalog Number:

NE4X3WH6

Color:

White

Country of Origin:

USA

ERP_productname:

PAND NE4X3WH6 SLOT HAL-FREE DUCT,4"X3"X6',WH, 6FT

Family Brand Name:

Panduit Corp.

Heights:

3.06 Inch

Length:

NA Foot

Material:

Polyphenylene Oxide

Mounting Type:

DIN Standard Mounting Holes

Overall Length:

6 ft

Size:

4.00 x 3.00 IN

Sub Brand:

Panduct®

Tc Connection:

DIN Mounting Holes

Type:

Base Wiring Duct

Widths:

4.14 in

SoneparProductId:

SKU_US_29825113

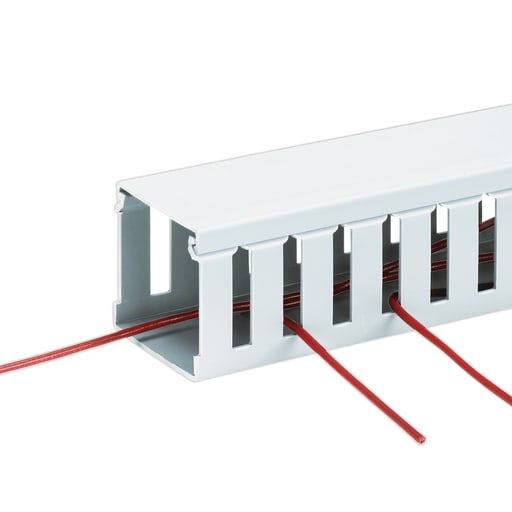

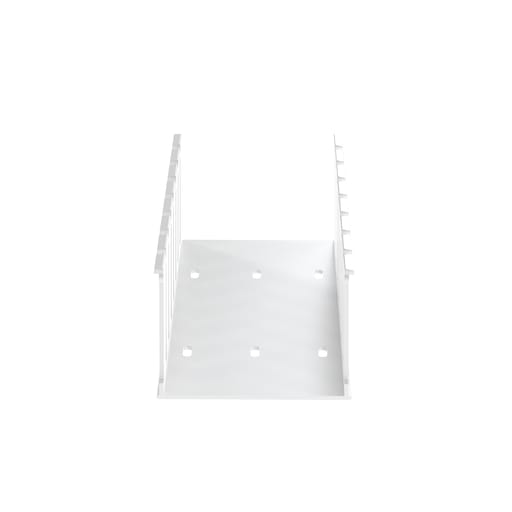

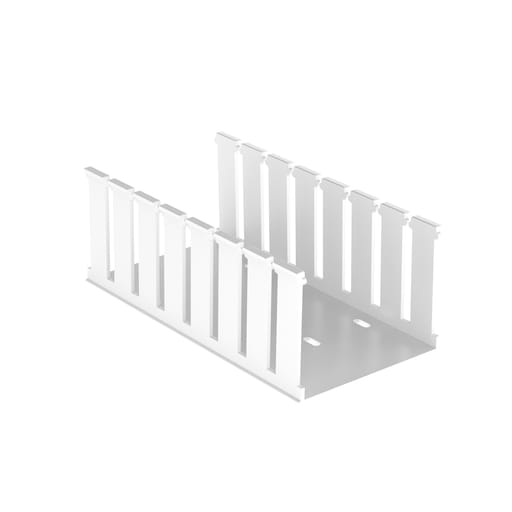

The NE4X3WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95.C (203.F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 3.06" x 4.14" (77.7 mm x 105.2 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package. Standards and Certifications: Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
