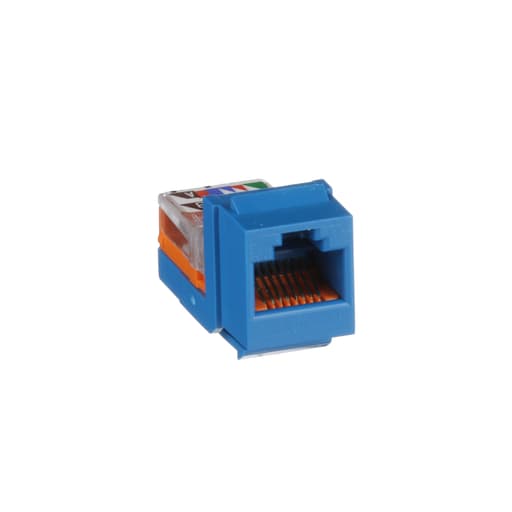

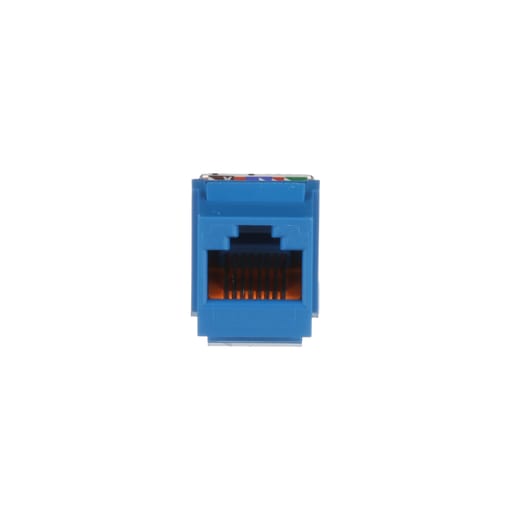

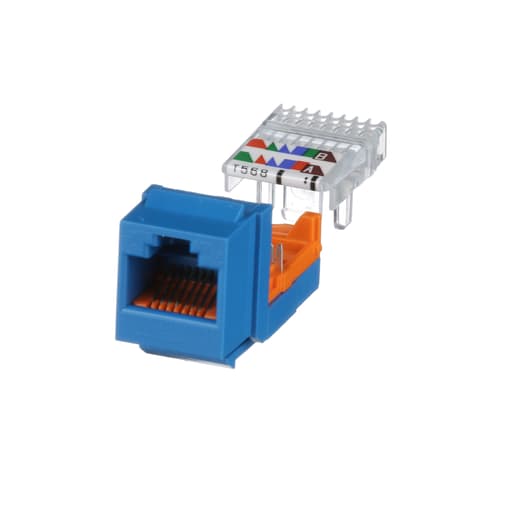

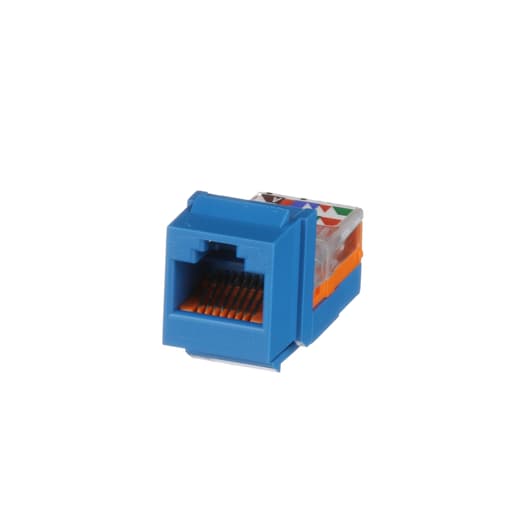

Panduit Corp - Panduit NK5E88MBUY UTP RJ45 Cat 5e Leadframe Keystone Jack Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983054985
Applications - Unshielded
Buy American - Y
Catalog Number - NK5E88MBUY
Color - Blue
Packaging
1 ea
EAN
00074983054985
Part #
121856
Catalog #
NK5E88MBUY
Commercial reference
NK5E88MBUY
12-Digit UPC:
074983054985
Applications:
Unshielded
Buy American:
Y
Catalog Number:
NK5E88MBUY
Color:
Blue
Country of Origin:
China
Depths:
1.37 Inch
ERP_productname:
PAND NK5E88MBUY NETKEY KEYSTONE CAT5E JACK MODULE BLUE
Family Brand Name:
Panduit Corp.
Heights:
22.2 mm
Number of Positions:
8
Overall Length:
34.8 mm
Sub Brand:
NetKey
Type:
RJ45, Lead frame, Unshielded
Widths:
16.4 mm
SoneparProductId:
SKU_US_31422471
The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is blue. Standards and Certifications: Standards Met: Meets all TIA/EIA-568-C.2 Category 5e and ISO 11801 Channel Performance, 2nd Edition Class D Channel Requirements at Swept Frequencies up to 100 MHz. Meets ANSI/TIA-968-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
