Panduit Corp - Panduit NK688MBL CAT 6 Punchdown Keystone Jack Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983574704
Applications - Unshielded
Buy American - Y
Catalog Number - NK688MBL
Color - Black
Packaging
1 ea
EAN
00074983574704
Part #
155028
Catalog #
NK688MBL
Commercial reference
NK688MBL
12-Digit UPC:
074983574704
Applications:
Unshielded
Buy American:
Y
Catalog Number:
NK688MBL
Color:
Black
Country of Origin:
USA
Depths:
29.5 mm
ERP_productname:
PAND NK688MBL NETKEY CAT6 UTP KEYSTONE JACK MODULE, BLACK
Family Brand Name:
Panduit Corp.
Heights:
0.9 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
1.16 in
Sub Brand:
NetKey
Type:
RJ45, Punchdown, Unshielded
Widths:
16.5 mm
SoneparProductId:
SKU_US_26618931

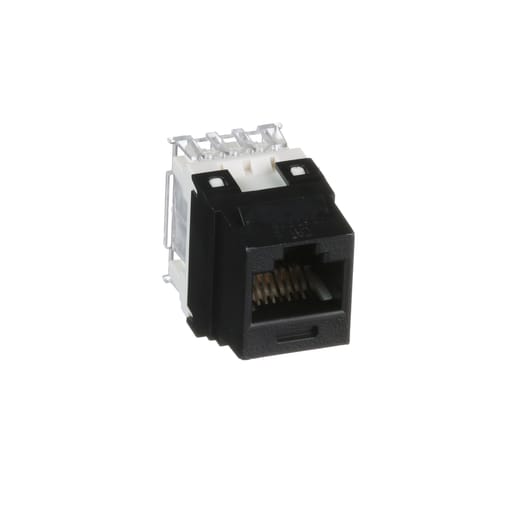

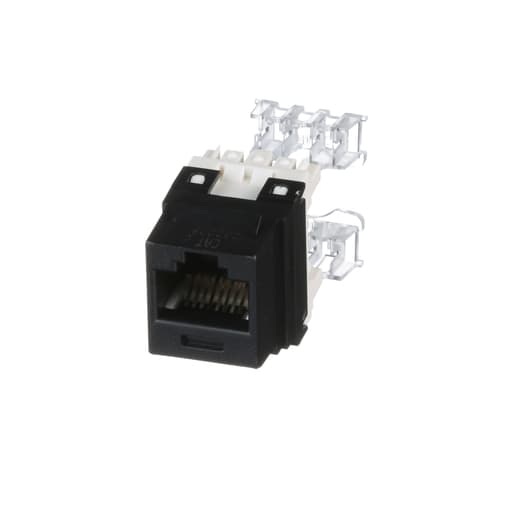

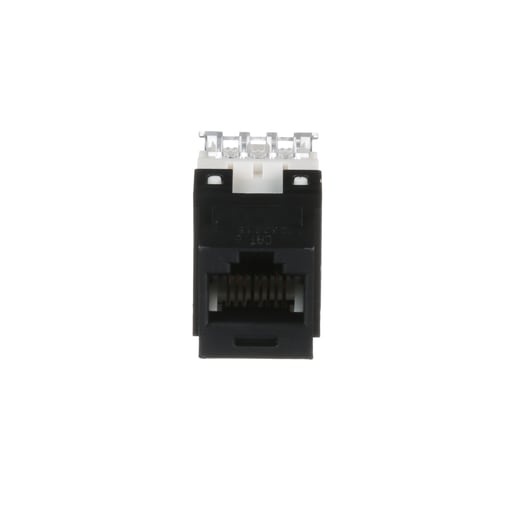

The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is black. Standards and Certifications: Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
