Panduit Corp - Panduit NK688MBU-Q UTP RJ45 Cat 6 Punchdown Keystone Jack Module, Blue
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983717583
Applications - Unshielded
Buy American - Y
Catalog Number - NK688MBU-Q
Color - Blue
Packaging
25 ea
EAN
00074983717583
Part #
210139
Catalog #
NK688MBU-Q
Commercial reference
NK688MBU-Q
12-Digit UPC:
074983717583
Applications:
Unshielded
Buy American:
Y
Catalog Number:
NK688MBU-Q
Color:
Blue
Country of Origin:
Costa Rica,USA
Depths:
29.5 mm
ERP_productname:
PAND NK688MBU-Q NETKEY CAT6 UTP KEYSTONE JACK MODULE, BLUE, PKG OF 25 PRICE EACH
Family Brand Name:
Panduit Corp.
Heights:
0.9 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
29.5 mm
Sub Brand:
NetKey
Type:
RJ45, Unshielded, 8-Wire, Keystone
Widths:
16.5 mm
SoneparProductId:
SKU_US_84500288

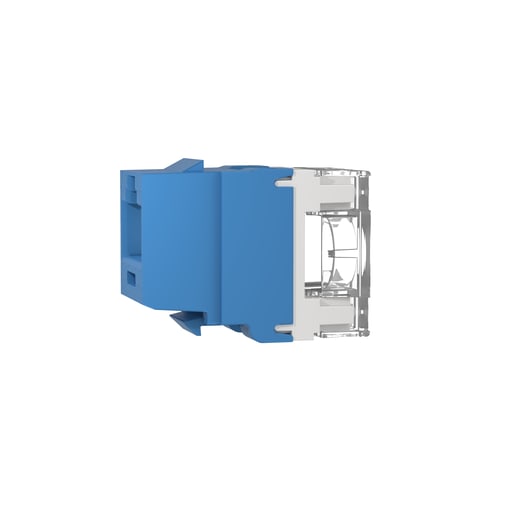

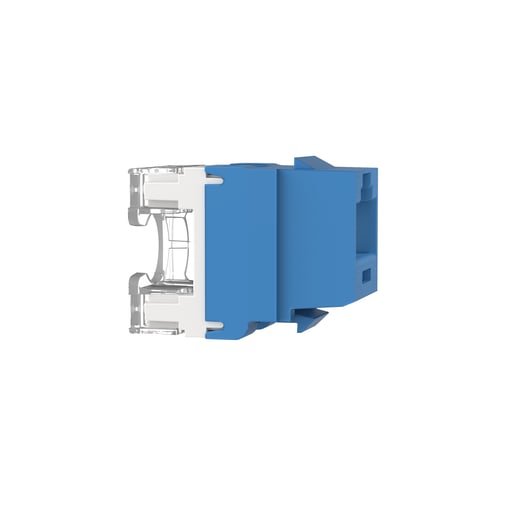

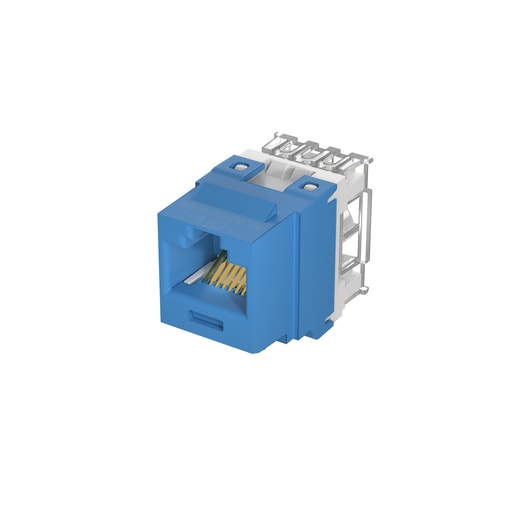

The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is blue and includes 25 per package. Standards and Certifications: Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
