Panduit Corp - Panduit NK688MGR-Q NetKey Cat 6 Punchdown Jack, Green - Pack of 25
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983997152
Applications - Unshielded
Buy American - Y
Catalog Number - NK688MGR-Q
Color - Green
Packaging
25 ea
EAN
00074983997152
Part #
103415
Catalog #
NK688MGR-Q
Commercial reference
NK688MGR-Q
12-Digit UPC:
074983997152
Applications:
Unshielded
Buy American:
Y
Catalog Number:
NK688MGR-Q
Color:
Green
Country of Origin:
USA
Depths:
1.16 Inch
ERP_productname:
PAND NK688MGR-Q NK CAT 6 PUNCHDOWN JACK MODULE 25 PACK - GREEN
Family Brand Name:
Panduit Corp.
Heights:
22.9 mm
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
29.5 mm
Sub Brand:
NetKey
Type:
RJ45, Unshielded, 8-Wire, Keystone
Widths:
16.5 mm
SoneparProductId:
SKU_US_166695374

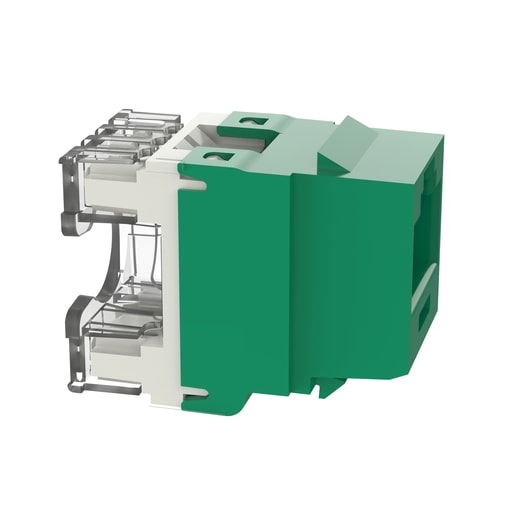

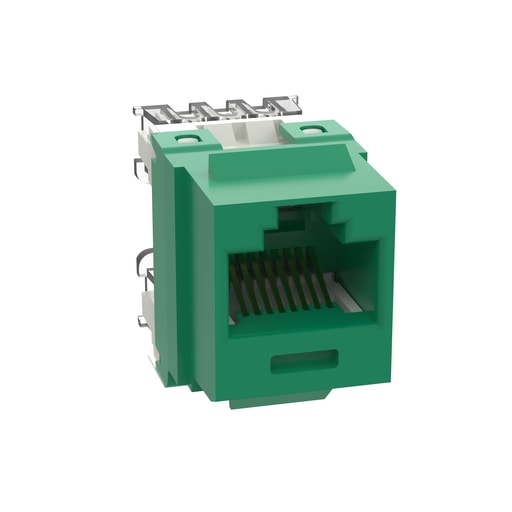

The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is green and includes 25 per package. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
