Panduit Corp - Panduit NK6TMWH UTP RJ45 Cat 6 Keystone Jack Module, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983438112

  • Applications - For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)

  • Buy American - Y

  • Catalog Number - NK6TMWH

  • Color - White

Packaging

  • 1 ea

EAN

00074983438112

Part #

140026

Catalog #

NK6TMWH

Commercial reference

NK6TMWH

12-Digit UPC:

074983438112

Applications:

For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)

Buy American:

Y

Catalog Number:

NK6TMWH

Color:

White

Country of Origin:

USA

Depths:

1.43 Inch

ERP_productname:

PAND NK6TMWH NETKEY CAT 6,8POS,8 WIRE UNIVERSAL JACK

Family Brand Name:

Panduit Corp.

Heights:

0.76 Inch

Material:

ABS Plastic

Number of Positions:

8

Overall Length:

36.3 mm

Sub Brand:

NetKey

Type:

Unshielded, 8-Wire, Keystone, Universal, Shuttered

Widths:

14.7 mm

SoneparProductId:

SKU_US_84928554

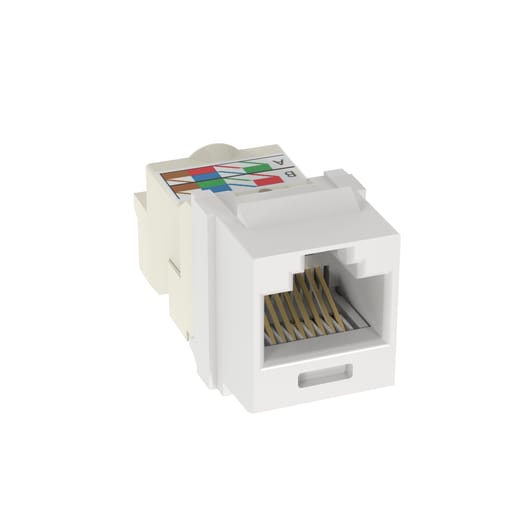

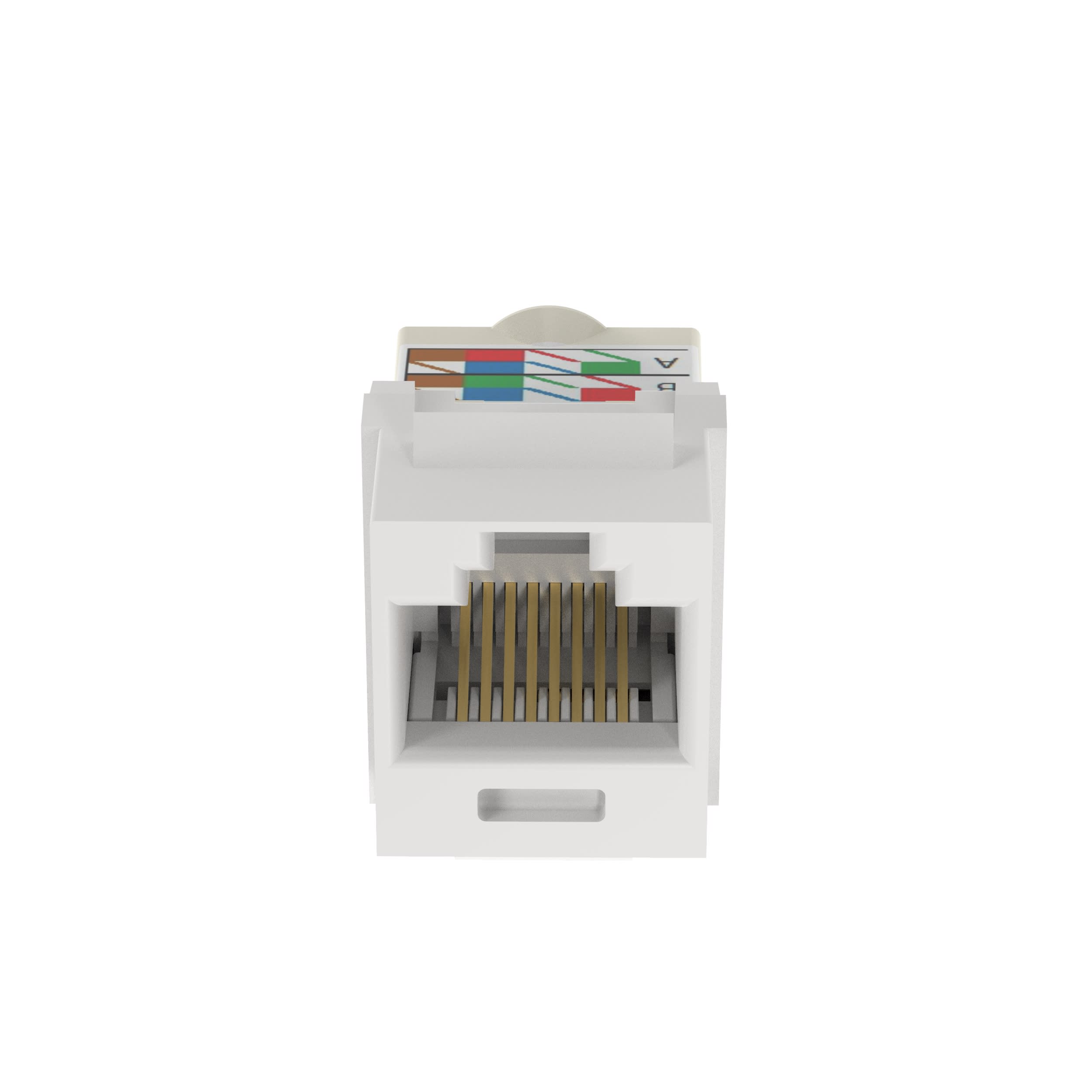

The NetKey® Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22.26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is white. Standards and Certifications: Standards Met: Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
