Panduit Corp - Panduit NK6X88MBU UTP RJ45 Cat 6A Keystone Punchdown Jack Module, Blue
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983722228
Applications - Unshielded
Buy American - Y
Catalog Number - NK6X88MBU
Color - Blue
Packaging
1 ea
EAN
00074983722228
Part #
197607
Catalog #
NK6X88MBU
Commercial reference
NK6X88MBU
12-Digit UPC:
074983722228
Applications:
Unshielded
Buy American:
Y
Catalog Number:
NK6X88MBU
Color:
Blue
Country of Origin:
USA
Depths:
1.16 Inch
ERP_productname:
PAND NK6X88MBU NETKEY CAT6A UTP KEYSTONE JACK MODULE, BLUE
Family Brand Name:
Panduit Corp.
Heights:
22.86 mm
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
29.5 mm
Sub Brand:
NetKey
Type:
RJ45, Unshielded, 8-Wire, Keystone
Widths:
16.5 mm
SoneparProductId:
SKU_US_30253560

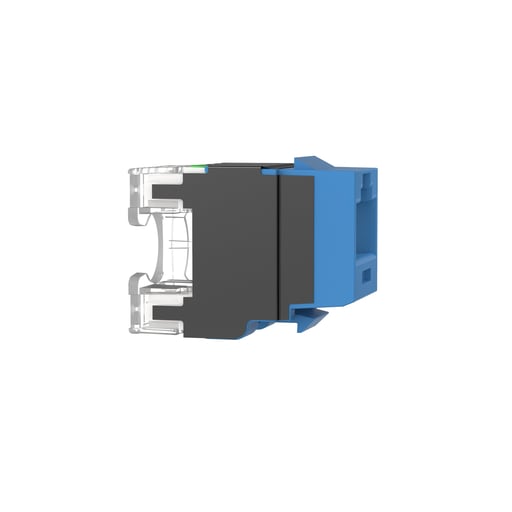

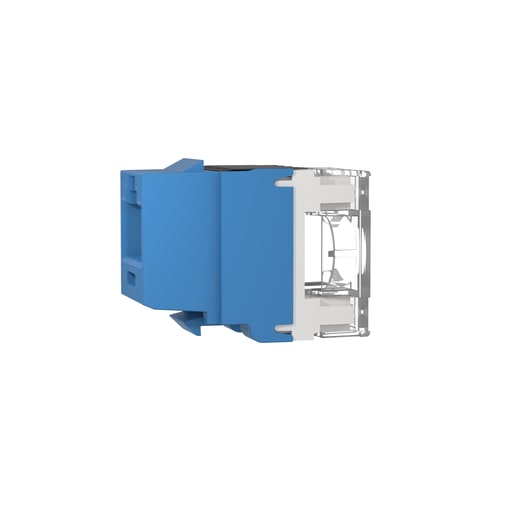

The NetKey® Cat 6A UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22.26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is blue. Standards and Certifications: Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
