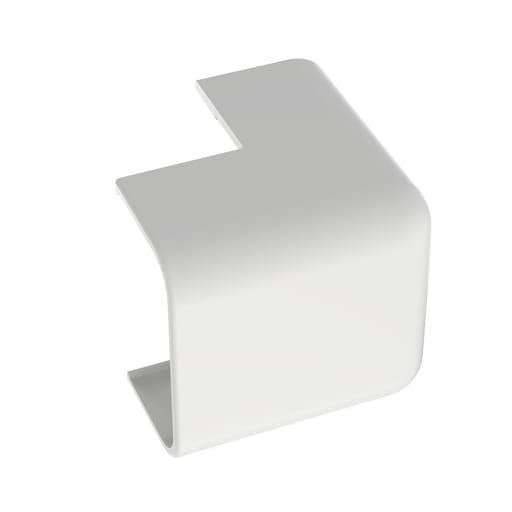

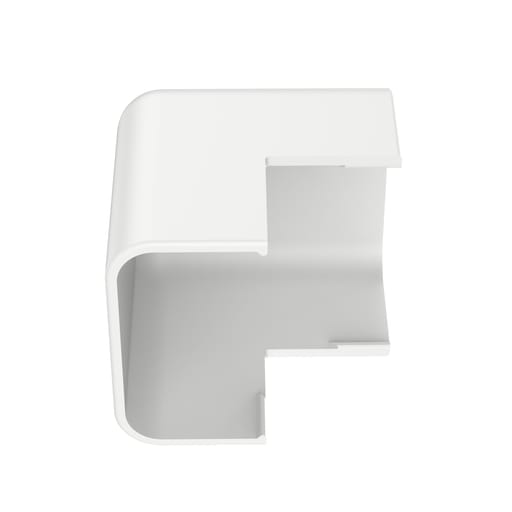

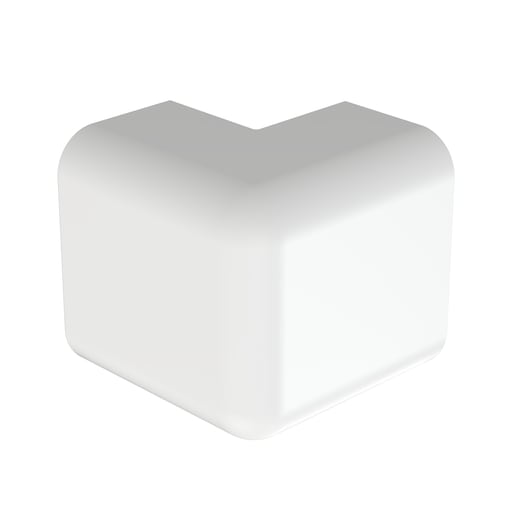

Panduit Corp - Panduit OCF10WH-X Surface Raceway, LD10 Low Voltage Outside Corner Fitting, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983586332

  • Applications - For Routing of Power or Low Voltage Data and Fiber Optic Cabling Along Perimeter Walls

  • Buy American - Y

  • Catalog Number - OCF10WH-X

  • Color - White

Packaging

  • 1 ea

EAN

00074983586332

Part #

128545

Catalog #

OCF10WH-X

Commercial reference

OCF10WH-X

12-Digit UPC:

074983586332

Applications:

For Routing of Power or Low Voltage Data and Fiber Optic Cabling Along Perimeter Walls

Buy American:

Y

Catalog Number:

OCF10WH-X

Color:

White

Country of Origin:

Costa Rica

ERP_productname:

PAND OCF10WH-X RCWY OUTSDE CRNR FTG

Family Brand Name:

Panduit Corp.

Heights:

1.6 Inch

Length:

1-1/2 Inch

Material:

Copper

Mounting Type:

Snap-On

Overall Length:

1.5 in

Sub Brand:

Pan-Way®

Type:

Low Voltage

Widths:

23.1 mm

SoneparProductId:

SKU_US_30048653

The outside corner fitting is a surface raceway fitting designed to transition your raceway around an outside corner while maintaining a 1 inch bend radius. It is designed to be used with the LD10 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is white. Standards and Certifications: Standards Met: UL94V-0, FT4, Meets TIA/EIA Standards - Prop 65: No
