Panduit Corp - Panduit P4-56R-T Large Wire Non-Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983870622
Buy American - Y
Catalog Number - P4-56R-T
Color - NA
Conductor Size - 4 AWG
Packaging
200 ea
EAN
00074983870622
Part #
449775
Catalog #
P4-56R-T
Commercial reference
P4-56R-T
12-Digit UPC:
074983870622
Buy American:
Y
Catalog Number:
P4-56R-T
Color:
NA
Conductor Size:
4 AWG
Country of Origin:
Mexico
ERP_productname:
PAND P4-56R-T PAN-TERM? P4-56R-T RING TERMINAL, BARE, 4 AWG, 5/16" STUD, PK200
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.46 in
Size:
5/16"
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Ring Terminal
Voltage:
2,000 Volt
Widths:
0.68 in
Wire Size:
4 AWG
SoneparProductId:
SKU_US_25626431

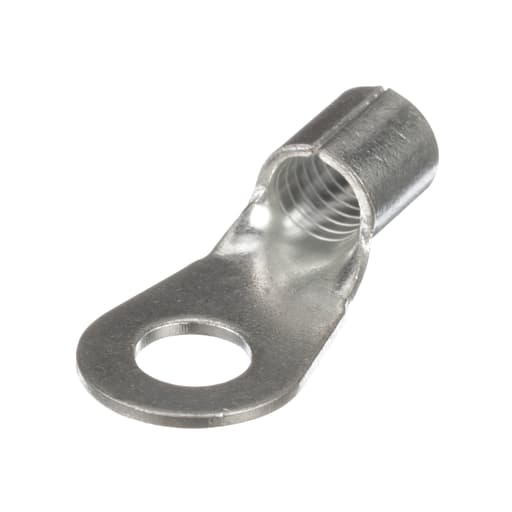

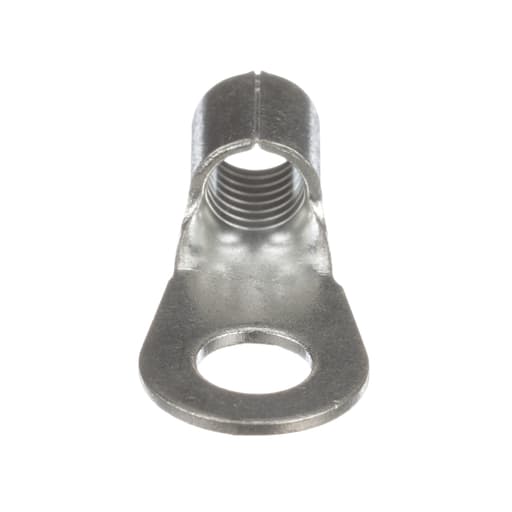

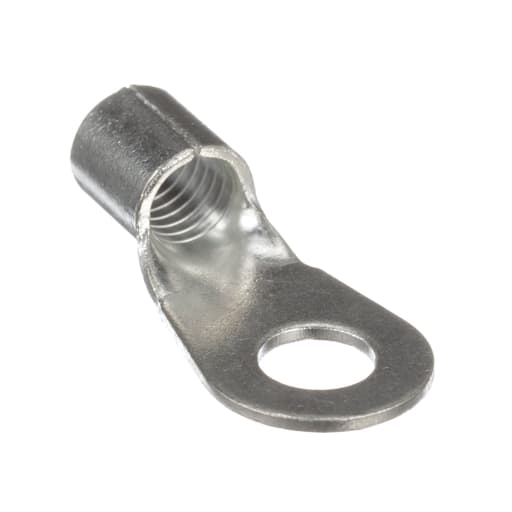

The P4-56R-T Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
