Panduit Corp - Panduit PCSB250-2-6Y Multi-Tap Mechanical Connector, Double Sided, 250, Tin Plated Aluminum, PK6
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983596591
Amperage - NA Amp
Applications - Aluminum or Copper Code Conductors
Buy American - Y
Catalog Number - PCSB250-2-6Y
Packaging
1 ea
EAN
00074983596591
Part #
218710
Catalog #
PCSB250-2-6Y
Commercial reference
PCSB250-2-6Y
12-Digit UPC:
074983596591
Amperage:
NA Amp
Applications:
Aluminum or Copper Code Conductors
Buy American:
Y
Catalog Number:
PCSB250-2-6Y
Country of Origin:
USA
ERP_productname:
PAND PCSB250-2-6Y MULTI-TAP CONNECTOR DOUBLE-SIDED CLEAR
Family Brand Name:
Panduit Corp.
Heights:
2.13 Inch
Material:
Aluminum
Number of Ports:
2
Overall Length:
2.03 in
Sub Brand:
Pan-Lug™
Type:
Mechanical, Double-Sided
Voltage:
600 Volt
Widths:
2.63 in
SoneparProductId:
SKU_US_75138935

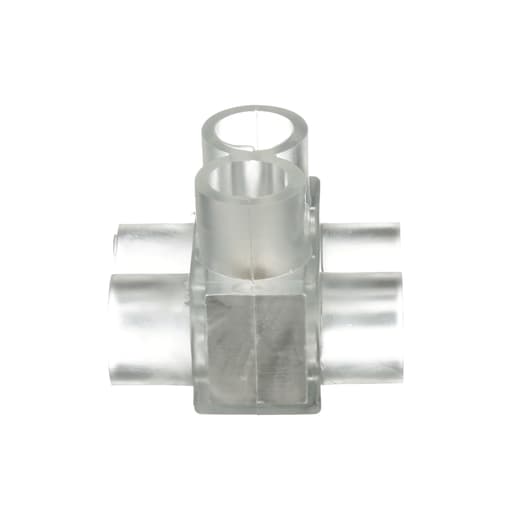

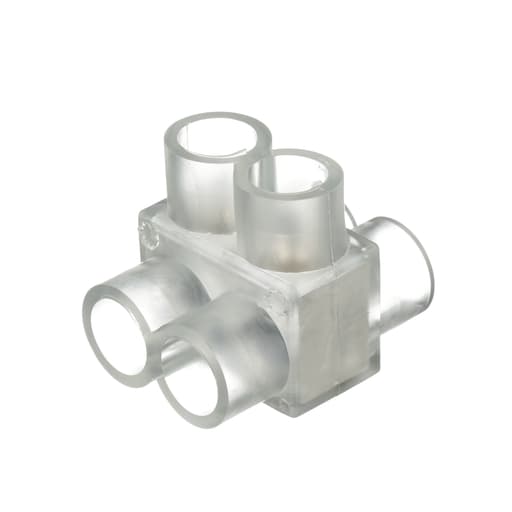

The PCSB250-2-6Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90±C - Prop 65: No
