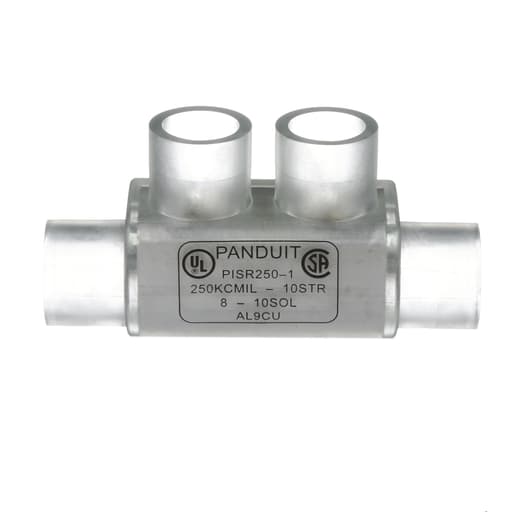

Panduit Corp - Panduit PISR250-1 Multi-Tap Connector, In-Line Splicer/Reducer, Tin Plate Al, PK1
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983574957
Buy American - Y
Catalog Number - PISR250-1
Color - Clear
Conductor Size - 10 AWG-250 kcmil/10-8 AWG
Packaging
1 ea
EAN
00074983574957
Part #
214174
Catalog #
PISR250-1
Commercial reference
PISR250-1
12-Digit UPC:
074983574957
Buy American:
Y
Catalog Number:
PISR250-1
Color:
Clear
Conductor Size:
10 AWG-250 kcmil/10-8 AWG
Country of Origin:
USA
ERP_productname:
PAND PISR250-1 SPLICER-REDUCER IN-LINE ALUMINUM CLEA
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Heights:
56.9 mm
Length:
4 Inch
Material:
Aluminum
Overall Length:
4 in
Size:
101.6 mm L x 31.8 mm W x 56.9 mm H
Sub Brand:
Pan-Lug™
Type:
Dual Rated, In-Line, Multi-Tap
Voltage:
600 Volt
Widths:
1.25 in
SoneparProductId:
SKU_US_29872883
The PISR250-1 Splicer/Reducer Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Dual rated for use with copper or aluminum conductors. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: UL listed and CSA certified for use up to 600V & UL Temperature Rated to 90±C
