Panduit Corp - Panduit PN10-10R-L 12-10 AWG Nylon Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983800322
Buy American - Y
Catalog Number - PN10-10R-L
Color - Yellow
Conductor Size - 12 AWG
Packaging
1 ea
EAN
00074983800322
Part #
131295
Catalog #
PN1010RL
Commercial reference
PN1010RL
12-Digit UPC:
074983800322
Buy American:
Y
Catalog Number:
PN10-10R-L
Color:
Yellow
Conductor Size:
12 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PN1010RL RING TERMINAL
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.06 in
Size:
#10
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Ring Terminal
Voltage:
600 Volt
Widths:
0.38 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_25618397

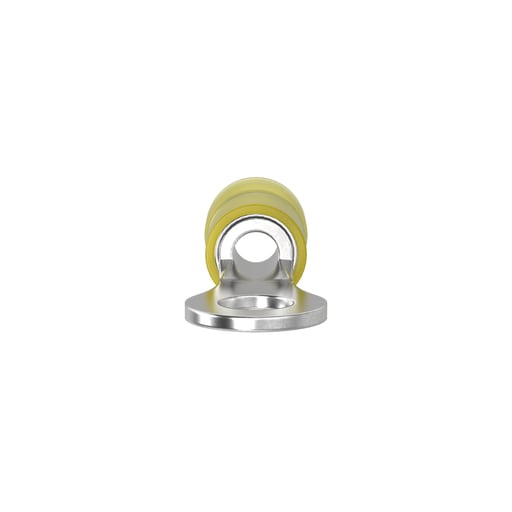

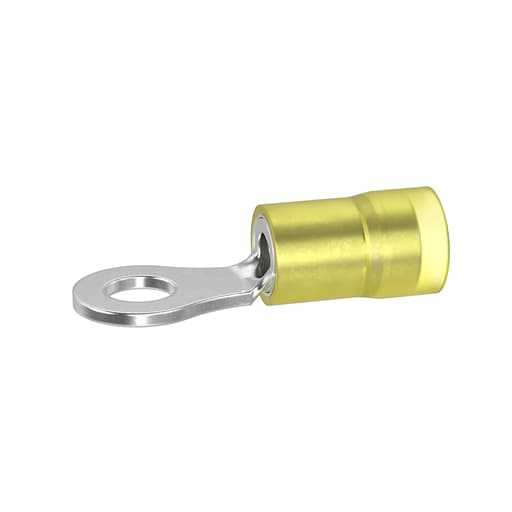

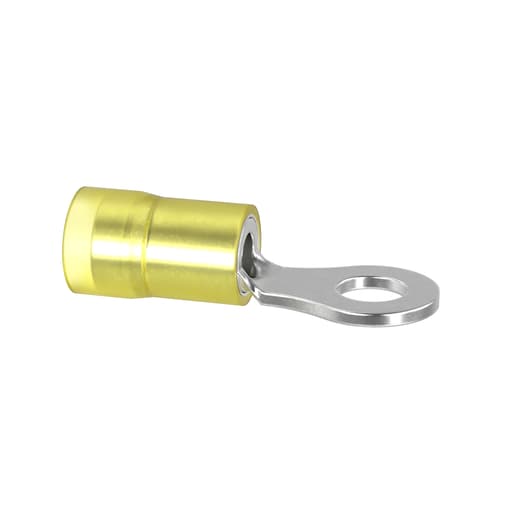

The PN10-10R-L Pan-Term® Terminal is a nylon insulated, ring terminal with funnel entry. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112)
