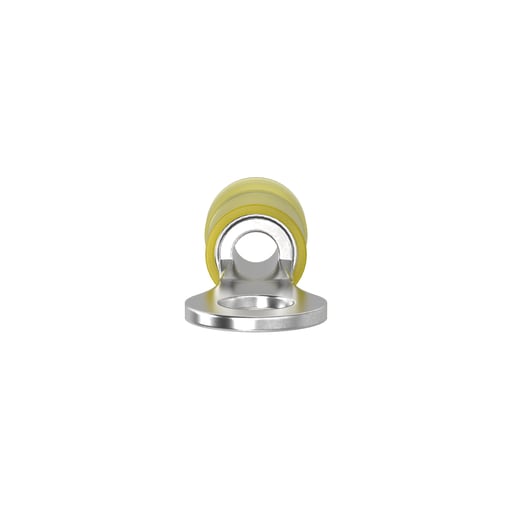

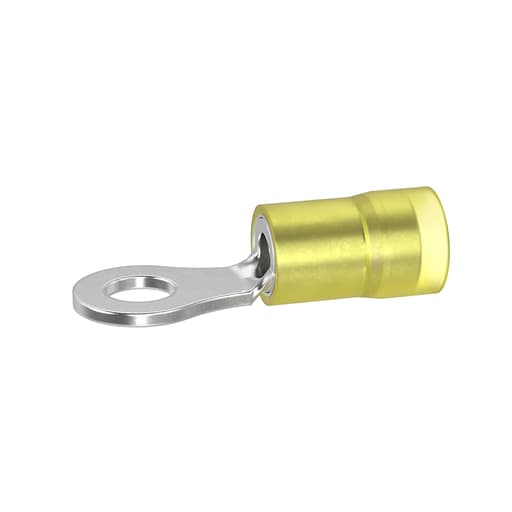

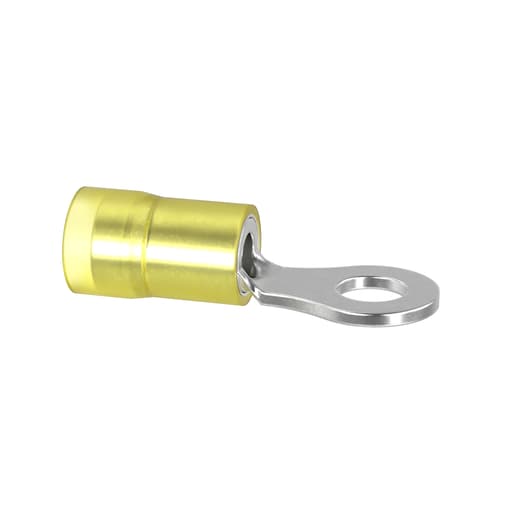

Panduit Corp - Panduit PNF10-10R-D 12-10 AWG Nylon Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983810260
Buy American - Y
Catalog Number - PNF10-10R-D
Color - Yellow
Conductor Size - 10 AWG
Packaging
500 ea
EAN
00074983810260
Part #
130876
Catalog #
PNF10-10R-D
Commercial reference
PNF10-10R-D
12-Digit UPC:
074983810260
Buy American:
Y
Catalog Number:
PNF10-10R-D
Color:
Yellow
Conductor Size:
10 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PNF10-10R-D RING TERM BULK-PK
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.06 in
Size:
#10
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Ring Terminal
Voltage:
600 Volt
Widths:
0.37 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_25899496
The PNF10-10R-D Pan-Term® Terminal is a nylon insulated, ring terminal with funnel entry. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. Prop 65: No - Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112)
