Panduit Corp - Panduit PV10-10LF-L Vinyl Insulated Locking Fork Terminal - #12-10, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983808168
Buy American - Y
Catalog Number - PV10-10LF-L
Color - Black on Yellow
Conductor Size - 10 AWG
Packaging
1 ea
EAN
00074983808168
Part #
134051
Catalog #
PV1010LFL
Commercial reference
PV1010LFL
12-Digit UPC:
074983808168
Buy American:
Y
Catalog Number:
PV10-10LF-L
Color:
Black on Yellow
Conductor Size:
10 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV1010LFL LOCKING TERMINAL
Enclosure:
Fork shape
Family Brand Name:
Panduit Corp.
Finish:
Rust-Proof Plating, Vinyl Coated
Material:
Copper
Overall Length:
1.04 in
Size:
10 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Interlocking Armored, Riser
Voltage:
600 Volt
Widths:
8.64 mm
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25716113

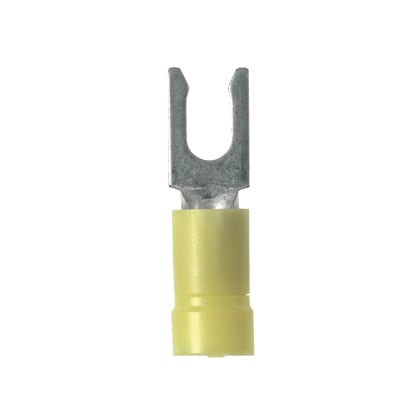

The PV10-10LF-L Pan-Term® Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength. Prop 65: No - Standards and Certifications: Standards Met: UL Listed 587H E52164; CSA Certified LR31212
