Panduit Corp - Panduit PV10-10R-L Vinyl Insulated Ring Terminal - #12-10, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983801329
Buy American - Y
Catalog Number - PV10-10R-L
Color - Yellow
Conductor Size - 12-10 AWG
Packaging
50 ea
EAN
00074983801329
Part #
134063
Catalog #
PV1010RL
Commercial reference
PV1010RL
12-Digit UPC:
074983801329
Buy American:
Y
Catalog Number:
PV10-10R-L
Color:
Yellow
Conductor Size:
12-10 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV1010RL RING TERMINAL VINYL #10 STUD 50 PACK
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.05 in
Size:
#10
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
7.9 mm
Wire Size:
10 AWG
SoneparProductId:
SKU_US_25438329

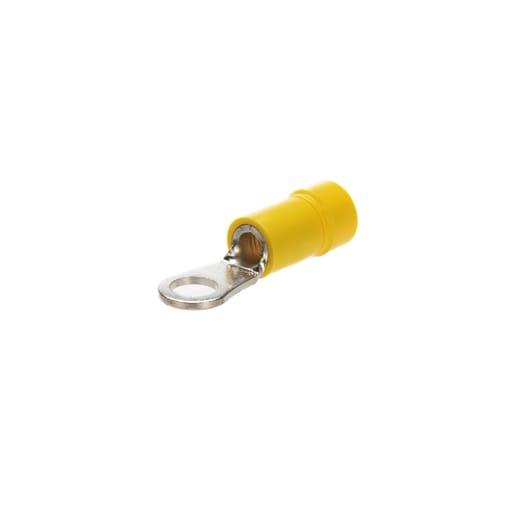

The PV10-10R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped. Prop 65: No - Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
