Panduit Corp - Panduit PV10-14R-L Vinyl Insulated Ring Terminal - #12-10, 1/4"bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983801343
Buy American - Y
Catalog Number - PV10-14R-L
Color - Yellow
Conductor Size - 12-10 AWG
Packaging
50 ea
EAN
00074983801343
Part #
134112
Catalog #
PV1014RL
Commercial reference
PV1014RL
12-Digit UPC:
074983801343
Buy American:
Y
Catalog Number:
PV10-14R-L
Color:
Yellow
Conductor Size:
12-10 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV1014RL RING TERMINAL VINYL 1/4" STUD 50 PACK
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.23 in
Size:
1/4"
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
7.9 mm
Wire Size:
10 AWG
SoneparProductId:
SKU_US_25535507

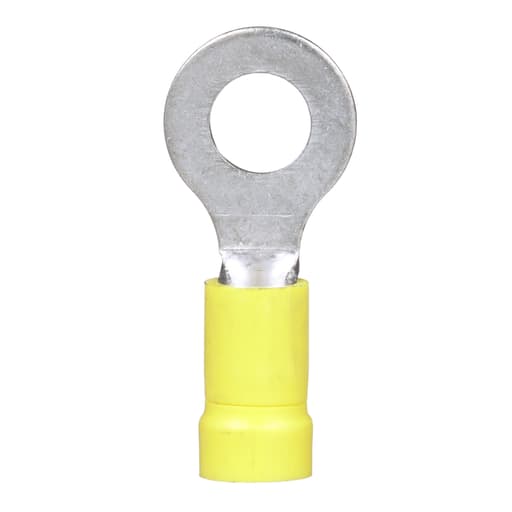

The PV10-14R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Prop 65: No - Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
