Panduit Corp - Panduit PV10-6F-L Vinyl Insulated Fork Terminal - #14-10, #6bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983804368
Buy American - Y
Catalog Number - PV10-6F-L
Color - Yellow
Conductor Size - 14-10 AWG
Packaging
1 ea
EAN
00074983804368
Part #
134190
Catalog #
PV10-6F-L
Commercial reference
PV10-6F-L
12-Digit UPC:
074983804368
Buy American:
Y
Catalog Number:
PV10-6F-L
Color:
Yellow
Conductor Size:
14-10 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV10-6F-L FORK TONGUE TERM
Enclosure:
Fork shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.01 in
Size:
#6
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
7.9 mm
Wire Size:
10 AWG
SoneparProductId:
SKU_US_25523143

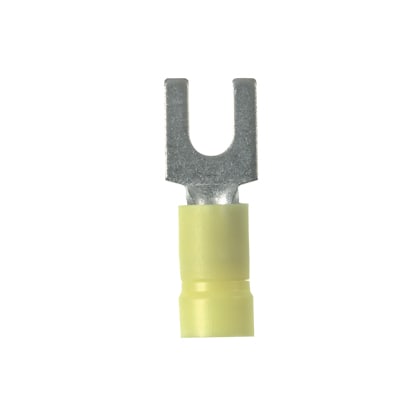

The PV10-6F-L Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: UL Listed 587H E52164; CSA Certified LR31212 - Prop 65: No
