Panduit Corp - Panduit PV10-8F-L Vinyl Insulated Fork Terminal - #14-10, #8bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983804122
Buy American - Y
Catalog Number - PV10-8F-L
Color - Yellow
Conductor Size - 14-10 AWG
Packaging
50 ea
EAN
00074983804122
Part #
134299
Catalog #
PV108FL
Commercial reference
PV108FL
12-Digit UPC:
074983804122
Buy American:
Y
Catalog Number:
PV10-8F-L
Color:
Yellow
Conductor Size:
14-10 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV108FL FORK TERMINAL VINYL #8 STUD 50 PACK
Enclosure:
Fork shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.04 in
Size:
#8
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
7.9 mm
Wire Size:
10 AWG
SoneparProductId:
SKU_US_25421333

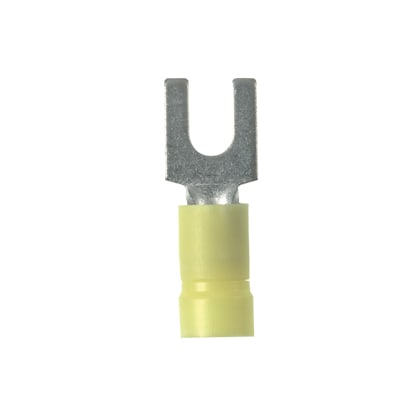

The PV10-8F-L Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: UL Listed 587H E52164; CSA Certified LR31212 - Prop 65: No
