Panduit Corp - Panduit PV14-10F-C Vinyl Insulated Fork Terminal - #16-14, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983804108
Buy American - Y
Catalog Number - PV14-10F-C
Color - Blue
Conductor Size - 16-14 AWG
Packaging
1 ea
EAN
00074983804108
Part #
134618
Catalog #
PV1410FC
Commercial reference
PV1410FC
12-Digit UPC:
074983804108
Buy American:
Y
Catalog Number:
PV14-10F-C
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV1410FC FORK TERMINAL VINYL #10 STUD 100 PACK
Enclosure:
Fork shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.92 in
Size:
#10
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
0.34 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_25435355

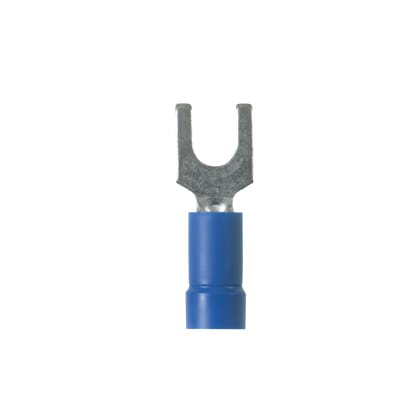

The PV14-10F-C Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength. Prop 65: No - Standards and Certifications: Standards Met: UL Listed 587H E52164; CSA Certified LR31212
