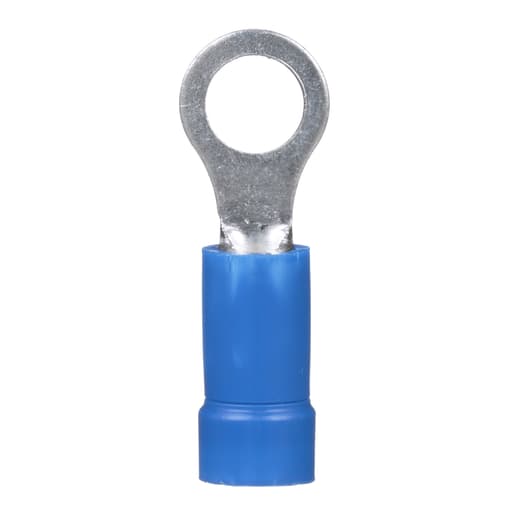

Panduit Corp - Panduit PV14-10R-C Vinyl Insulated Ring Terminal - #16-14, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983801206
Buy American - Y
Catalog Number - PV14-10R-C
Color - Blue
Conductor Size - 16-14 AWG
Packaging
100 ea
EAN
00074983801206
Part #
134678
Catalog #
PV1410RC
Commercial reference
PV1410RC
12-Digit UPC:
074983801206
Buy American:
Y
Catalog Number:
PV14-10R-C
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV1410RC RING TERMINAL VINYL #10 STUD 100 PACK
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.92 in
Size:
10 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
7.9 mm
Wire Size:
1.5-2.5 AWG
SoneparProductId:
SKU_US_25415460
The PV14-10R-C Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212 - Prop 65: No
