Panduit Corp - Panduit PV14-10R-M 16-14 AWG Vinyl Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983801213
Buy American - Y
Catalog Number - PV14-10R-M
Color - Blue
Conductor Size - 16-14 AWG
Packaging
1 ea
EAN
00074983801213
Part #
134687
Catalog #
PV1410RM
Commercial reference
PV1410RM
12-Digit UPC:
074983801213
Buy American:
Y
Catalog Number:
PV14-10R-M
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV1410RM RING TERM BULK/PK
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.92 in
Size:
#10
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Ring Terminal
Voltage:
600.0
Widths:
0.31 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_25731115

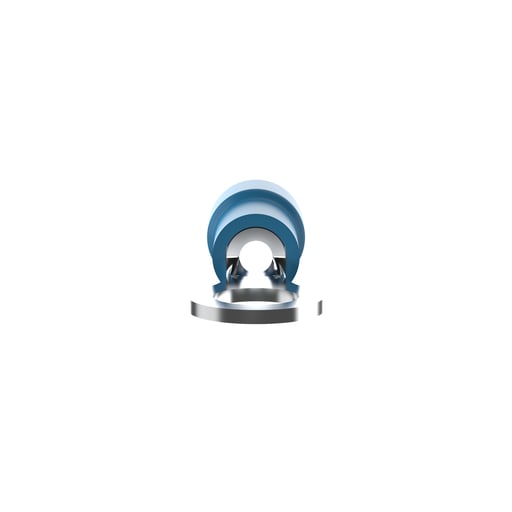

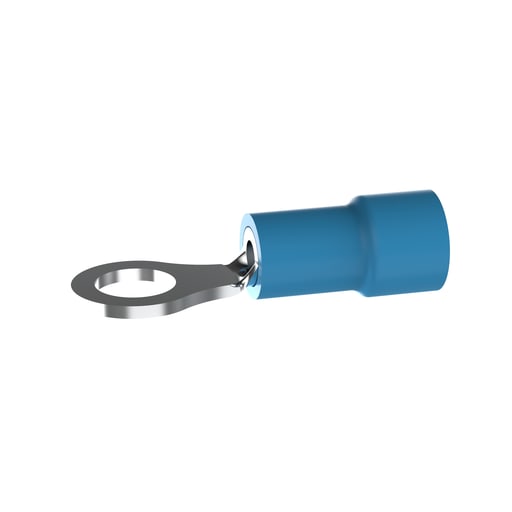

The PV14-10R-M Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212 - Prop 65: No
