Panduit Corp - Panduit PV14-10RB-3K 16-14 AWG Vinyl Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983803576
Buy American - Y
Catalog Number - PV14-10RB-3K
Color - Blue
Conductor Size - 16-14 AWG
Packaging
1 ea
EAN
00074983803576
Part #
192841
Catalog #
PV14-10RB-3K
Commercial reference
PV14-10RB-3K
12-Digit UPC:
074983803576
Buy American:
Y
Catalog Number:
PV14-10RB-3K
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
Mexico,USA
ERP_productname:
PAND PV14-10RB-3K #14 VNL RG TERM
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.86 in
Size:
#10
Sub Brand:
Reel Smart™
Tc Connection:
Funnel Entry
Type:
Ring Terminal
Voltage:
600 Volt
Widths:
0.31 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_25544116

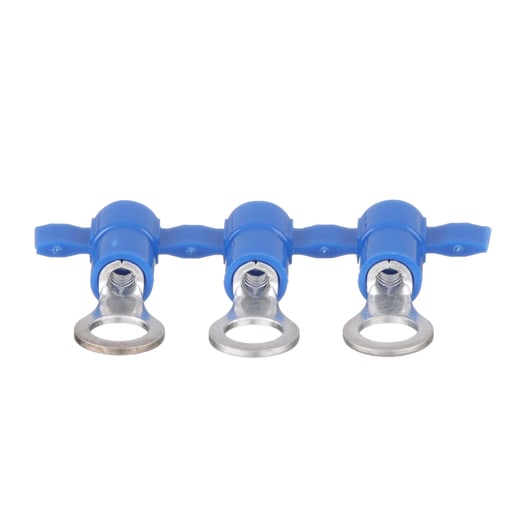

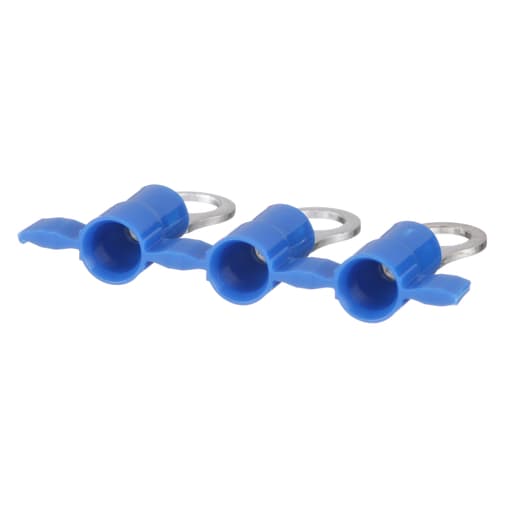

The PV14-10RB-3K Reel Smart™ Terminal is a continuously molded and fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
