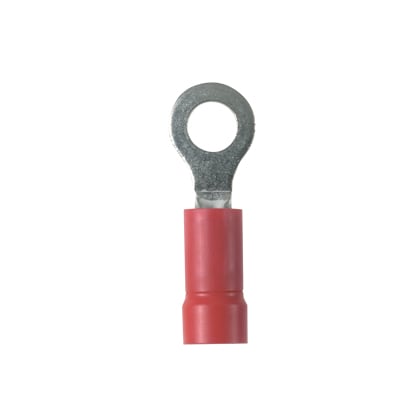

Panduit Corp - Panduit PV18-10R-CY 22-18 AWG Vinyl Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983688500
Buy American - Y
Catalog Number - PV18-10R-CY
Color - Red
Conductor Size - 22-18 AWG
Packaging
100 ea
EAN
00074983688500
Part #
150602
Catalog #
PV18-10R-CY
Commercial reference
PV18-10R-CY
12-Digit UPC:
074983688500
Buy American:
Y
Catalog Number:
PV18-10R-CY
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV18-10R-CY VYL INS RING TERM 22-18 WIRE #10 STUD 100 PACK
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.94 in
Size:
#10
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
7.9 mm
Wire Size:
18 AWG
SoneparProductId:
SKU_US_25685951
The PV18-10R-CY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212 - Prop 65: No
