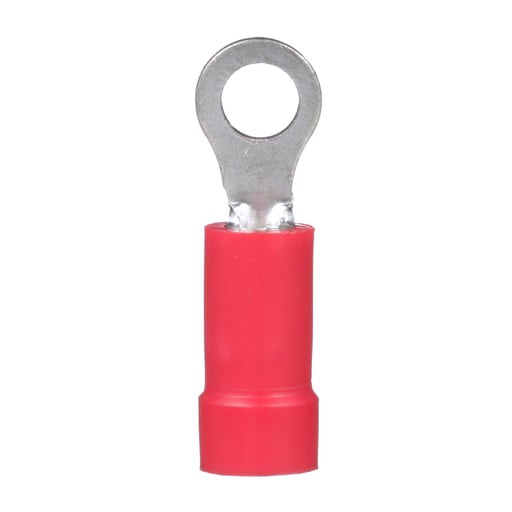

Panduit Corp - Panduit PV18-6R-CY Vinyl Insulated Ring Terminal - #22-18, #6bolt

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983694648

  • Buy American - Y

  • Catalog Number - PV18-6R-CY

  • Color - Red

  • Conductor Size - 22-18 AWG

Packaging

  • 100 ea

EAN

00074983694648

Part #

135071

Catalog #

PV186RCY

Commercial reference

PV186RCY

12-Digit UPC:

074983694648

Buy American:

Y

Catalog Number:

PV18-6R-CY

Color:

Red

Conductor Size:

22-18 AWG

Country of Origin:

Mexico

ERP_productname:

PAND PV186RCY RING TERMINAL 22-18 WIRE #6 STUD 100 PACK

Enclosure:

Ring shape

Family Brand Name:

Panduit Corp.

Finish:

Tin Plated

Material:

Copper

Overall Length:

0.86 in

Size:

#6

Sub Brand:

Pan-Term®

Tc Connection:

Funnel Entry

Type:

Loose-Piece

Voltage:

600 Volt

Widths:

7.9 mm

Wire Size:

18 AWG

SoneparProductId:

SKU_US_25670403

The PV18-6R-CY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212 - Prop 65: No
